DLO7135

Common Pin :
Operating Voltage :
Operating Current :
Packaging :
Number of Digits : 1
Illumination Color : Red
Maximum Operating Temperature : + 85 C
Minimum Operating Temperature : - 40 C
Wavelength : 635 nm
Display Type : 5 x 7 Dot Matrix
Character Size : 0.68 in


Features:

• 5x7 Dot Matrix Characters
   DLO4135/DLG4137: .43" High
   DLO7135/DLG7137: .68" High
• Wide Viewing Angle±75
• 96 Character ASCII Set
   Upper Case and Lower Case Characters
• Fully Encapsulated, Rugged Solid Plastic Package
• Built-in Memory
• Built-in Character Generator
• Built-in Multiplex and LED Drive Circuitry
• Built-in Lamp Test
• Intensity Control (4 levels)
• Microprocessor Bus Compatible
• Intensity Coded for Display Uniformity
• Single 5-Volt Power Supply
• X/Y Stackable
• Available in High Efficiency Red and Green

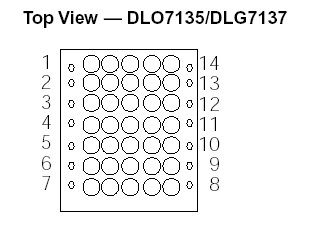

Pinout




Specifications

V_CCRange (max.) . . . . . . . . . . . . . . . . . . . . . . 0.5 to +7.0 V_dc
Voltage, Any Pin, Respect to GND . . . . . . 0.5 to V_CC+0.5 Vdc
Operating Temperature . . . . . . . . . . . . . . . . . . 40 to +85
Storage Temperature . . . . . . . . . . . . . . . . .. . 40 to +100
Maximum Solder Temperature, .063"
below Seating Plane, t<5 sec. . . . . . . . . . . . . . . . . .. . . . 260
Relative Humidity at 85(non condensing) . . . . . . . . . . . . 85%

Description

The DLX413X/DLX713X are single digit 5x7 dot matrixIntelligent Display devices. The DLX413X character is0.43" high. The DLX713X character is 0.68" high. The builtinCMOS integrated circuit contains memory, ASCII charactergenerator, LED multiplexing and drive circuitry;thereby eliminating the need for additional circuitry. Theywill display the 96 ASCII characters.

These DLX413X/DLX713X devices are TTL and microprocessor compatibleand offer the possibility of cascading the displays, allowingfor multi-character messages. These displays weredesigned for viewing distances of up to 20 feet(DLX413X)or 30 feet (DLX713X). They require a single 5-volt powersupply and parallel ASCII input.

All DLX413X/DLX713X products are 100% tested, then subjected to out-goingAQLs of .25% for brightness matching, visual alignmentand dimensions, .065% for electrical and functional.Maximum Ratings

Parameters:

Technical/Catalog Information	DLO7135
Vendor	OSRAM Opto Semiconductors Inc
Category	Optoelectronics
Color	Red
Size / Dimension	1.00" L x 0.50" W x 0.31" H (25.40mm x 12.70mm x 7.87mm)
Millicandela Rating	-
Configuration	-
Voltage - Forward (Vf) Typ	-
Internal Connection	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DLO7135 DLO7135 475 1360 ND 4751360ND 475-1360
