Part Number: DM74ALS804AN



MFG: FSC

Package Cooled: DIP20

D/C: 98+

Description: This device contains six independent 2-input drivers, each of which performs the logic NAND function.


Urgent Purchase

DM74ALS804AN General Description


This device contains six independent 2-input drivers, each of which performs the logic NAND function.

DM74ALS804AN Maximum Ratings

Supply Voltage ...........................................................7V
Input Voltage............................................................. 7V
Operating Free Air Temperature Range ....0°C to +70°C
Storage Temperature Range -...............65°C to +150°C
Typical qJA
N Package .......................................................58.0°C/W
M Package .......................................................78.0°C/W
Note 1: The "Absolute Maximum Ratings" are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The "Recommended Operating Conditions" table will define the conditions
for actual device operation.

DM74ALS804AN Features

·  Switching specifications at 50 pF
·  Switching specifications guaranteed over full temperature and VCC range
·  Advanced oxide-isolated, ion-implanted Schottky TTL process
·  Functionally and pin for pin compatible with Schottky
  and low power Schottky TTL counterpart
·  Improved AC performance over Schottky and low power
  Schottky counterparts

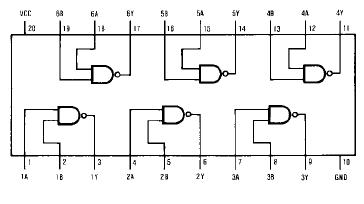

DM74ALS804AN Connection Diagram

DM74ALS804AN Connection Diagram

DM74ALS804AN datasheet
