DM74AS34N

Logic Type: Buffer/Line Driver, Non-Inverting
Number of Bits per Element: 1
Voltage - Supply: 4.5 V ~ 5.5 V
Number of Elements: 6
Operating Temperature: 0°C ~ 70°C
Mounting Type: Through Hole
Package / Case: 14-DIP (0.300", 7.62mm)
Packaging: Tube
Series: 74AS
Supplier Device Package: 14-DIP
Manufacturer: Fairchild Semiconductor
Current - Output High, Low: 2mA, 20mA


Features:

·  Switching specifications at 50 pF
·  Switching specifications guaranteed over full temperature
  and VCC range
·  Advanced oxide-isolated, ion-implanted Schottky TTL process

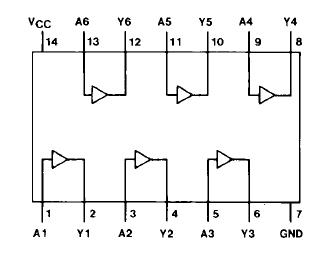

Pinout




Specifications

Supply Voltage ....................................................................7V
Input Voltage ......................................................................7V
Operating Free Air Temperature Range .............0°C to +70°C
Storage Temperature Range ........................-65°C to +150°C
Typical qJA
N Package.................................................................... 84.5°C
Note 1: The "Absolute Maximum Ratings" are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The "Recommended Operating Conditions" table will define the conditions
for actual device operation.


Description

These DM74AS34N contain six independent gates, each of which performs the logic identity function.


Parameters:

Technical/Catalog Information	DM74AS34N
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Number of Circuits	6 - Hex
Package / Case	14-DIP
Logic Type	Inverter
Packaging	Tube
Mounting Type	Through Hole
Number of Inputs	1
Current - Output High, Low	2mA, 20mA
Supply Voltage	4.5 V ~ 5.5 V
Operating Temperature	0°C ~ 70°C
Voltage - Supply	4.5 V ~ 5.5 V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DM74AS34N DM74AS34N
