DM9000

Features: *Supports processor interface: byte/word/dword of I/O command to internal memory data operation*Integrated 10/100M transceiver*Supports MII and reverses MII interface*Supports back pressure mode for half-duplex mode flow control*IEEE802.3x flow control for full-duplex mode*Supports wakeu...

product image

DM9000 Picture
See larger image
SeekIC No. : 004327360 Detail

DM9000: Features: *Supports processor interface: byte/word/dword of I/O command to internal memory data operation*Integrated 10/100M transceiver*Supports MII and reverses MII interface*Supports back pressur...

DM9000 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DM9000
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*Supports processor interface: byte/word/dword of I/O command to internal memory data operation
*Integrated 10/100M transceiver
*Supports MII and reverses MII interface
*Supports back pressure mode for half-duplex mode flow control
*IEEE802.3x flow control for full-duplex mode
*Supports wakeup frame, link status change and magic packet events for remote wake up
*Integrated 4K dword SRAM
*Supports automatically load vendor ID and product ID from EEPROM
*Supports 4 GPIO pins
*Optional EEPROM configuration
*Very low power consumption mode:
  Power reduced mode (cable detection)
  Power down mode
  Selectable TX drivers for 1:1 or 1.25:1 transformers for additional power reduction.
*Compatible with 3.3V and 5.0V tolerant I/O
*100-pin LQFP with CMOS process



Pinout

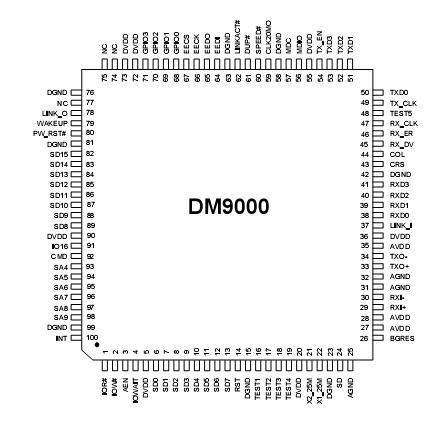

Connection Diagram


Specifications

Symbol Parameter Min. Max. Unit Conditions
DVDD AVDD Supply Voltage -0.3 3.6 V
VIN DC Input Voltage (VIN) -0.5 5.5 V
VOUT DC Output Voltage(VOUT) -0.3 3.6 V
Tstg Storage Temperature Rang (Tstg) -65 +150 EIAJ-4701
Tc Case Temperature 0 85 Air Flow = 0m/min
LT Lead Temp. (TL, Soldering, 10 sec.) --- 235 J-STD-020A
ESD ESD rating (Rzap=1.5k Czap=100PF)   3000 V Human Body Mode



Description

  The DM9000 is a fully integrated and cost-effective single chip Fast Ethernet MAC controller with a general processor interface,a 10/100M PHY and 4K Dword SRAM. It is designed with low power and high performance process that support 3.3V with 5V tolerance.

  The DM9000 also provides a MII interface to connect HPNA device or other transceivers that support MII interface. The DM9000 supports 8-bit, 16-bit and 32-bit uP interfaces to internal memory accesses for different processors. The PHY of the DM9000 can interface to the UTP3, 4, 5 in 10Base-T and UTP5 in100Base-TX. It is fully compliant with the IEEE 802.3u Spec.Its auto-negotiation function will automatically configure the DM9000 to take the maximum advantage of its abilities. The DM9000 also supports IEEE 802.3x full- duplex flow control.This programming of the DM9000 is very simple, so user can port the software drivers to any system easily.
