DM9000A

Features: · 48-pin LQFP· Supports processor interface: byte/word of I/O command to internal memory data operation· Integrated 10/100M transceiver with AUTO-MDIX· Supports back pressure mode for half-duplex mode flow control· IEEE802.3x flow control for full-duplex mode· Supports wakeup frame, link...

product image

DM9000A Picture
See larger image
SeekIC No. : 004327361 Detail

DM9000A: Features: · 48-pin LQFP· Supports processor interface: byte/word of I/O command to internal memory data operation· Integrated 10/100M transceiver with AUTO-MDIX· Supports back pressure mode for half...

DM9000A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DM9000A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 48-pin LQFP
· Supports processor interface: byte/word of I/O command to internal memory data operation
· Integrated 10/100M transceiver with AUTO-MDIX
· Supports back pressure mode for half-duplex mode flow control
· IEEE802.3x flow control for full-duplex mode
· Supports wakeup frame, link status change and magic packet events for remote wake up
· Integrated 16K Byte SRAM
· Build in 3.3V to 2.5V regulator
· Supports early Transmit
· Supports IP/TCP/UDP checksum generation and checking
· Supports automatically load vendor ID and product ID from EEPROM
· Optional EEPROM configuration
· Very low power consumption mode:
· Power reduced mode (cable detection)
· Power down mode
· Selectable TX drivers for 1:1 or 1.25:1 transformers for additional power reduction.
· Compatible with 3.3V and 5.0V tolerant I/O


Pinout

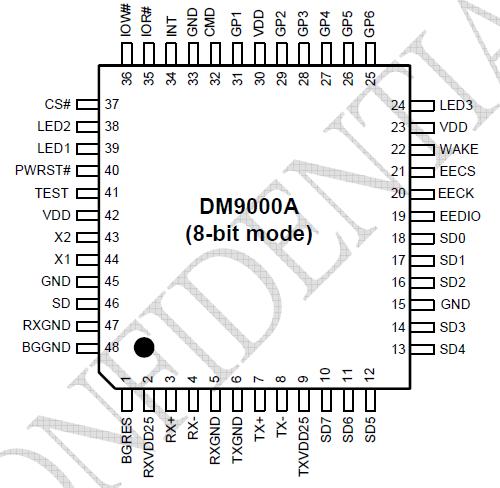

Connection Diagram


Specifications

Symbol
Parameter
Min.
Max.
Unit
DVDD
 Supply Voltage
-0.3
3.6
V
VIN
 DC Input Voltage (VIN)
-0.5
5.5
V
VOUT
 DC Output Voltage(VOUT)
-0.3
3.6
V
Tstg
 Storage Temperature range
-65
+150
TC
 Case Temperature
0
+85
TA
 Ambient Temperature
0
+70
LT
 Lead Temperature
(TL,soldering,10 sec.).
-
+235
-



Description

The DM9000A is a fully integrated and cost-effective low pin count single chip Fast Ethernet controller with a general processor interface, a 10/100M PHY and 4K Dword SRAM. It is designed with low power and high performance process that support 3.3V with 5V IO tolerance.

The DM9000A supports 8-bit and 16-bit data interfaces to internal memory accesses for various processors. The PHY of the DM9000A can interface to the UTP3, 4, 5 in 10Base-T and UTP5 in 100Base-TX with AUTO-MDIX. It is fully compliant with the IEEE 802.3u Spec. Its auto-negotiation function will automatically configure the DM9000A to take the maximum advantage of its abilities. The DM9000A also supports IEEE 802.3x fullduplex flow control..
