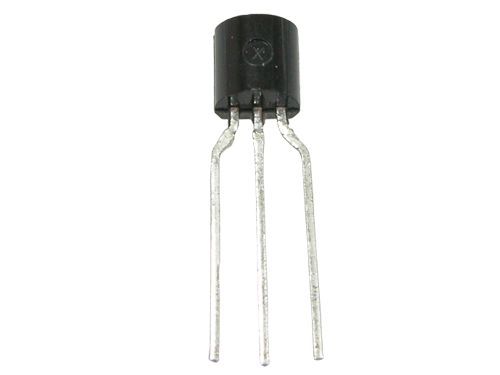

DP500

Pinout






Specifications

Characteristic	Symbol	Ratings	Unit
Collector-Base voltage	VCBO	-15	V
Collector-Emitter voltage	VCEO	-12	V
Emitter-Base voltage	VEBO	-5	V
Collector current	IC	-5	A
Collector dissipation	PC	625	mW
Junction temperature	Tj	150
Storage temperature	Tstg	-55~150

Description

Bipolar transistors DP500, also called junction type transistors, are a kind of transistors. Unlike field-effect transistors (unipolar transistors), DP500 are called bipolar because they have two kinds of carriers (hole, electron)
The DP500 features:
Extremely low collector-to-emitter saturation voltage( V _CE(SAT) =-0.2V Typ. @I_C /I_B=-3A/-150mA)
Suitable for low voltage large current drivers
Excellent h_FE Linearity
Complementary pair with DN500
