DP500F

PinoutSpecifications Characteristic Symbol Ratings Unit Collector-Base voltage VCBO -15 V Collector-Emitter voltage VCEO -12 V Emitter-Base voltage VEBO -5 V Collector current IC -5 A Collector dissipation PC 0.5 ...

product image

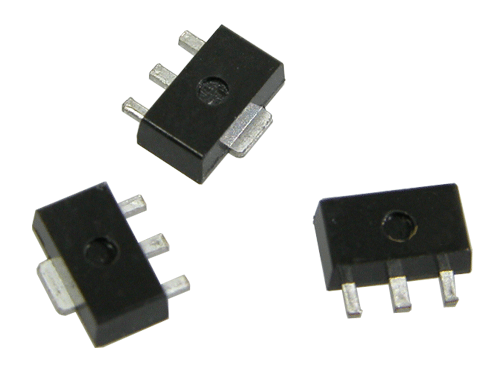

DP500F Picture
See larger image
SeekIC No. : 004327901 Detail

DP500F: PinoutSpecifications Characteristic Symbol Ratings Unit Collector-Base voltage VCBO -15 V Collector-Emitter voltage VCEO -12 V Emitter-Base voltage ...

DP500F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DP500F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout






Specifications

Characteristic
Symbol
Ratings
Unit
Collector-Base voltage
VCBO
-15
V
Collector-Emitter voltage
VCEO
-12
V
Emitter-Base voltage
VEBO
-5
V
Collector current
IC
-5
A
Collector dissipation
PC
0.5
W
PC
2
Junction temperature
Tj
150
Storage temperature
Tstg
-55~150





Description

The DP500F features:

Extremely low collector-to-emitter saturation voltage ( V CE(SAT) =-0.2V Typ. @IC /IB =-3A/-150mA)
Suitable for low voltage large current drivers
Excellent hFE Linearity
Complementary pair with DN500F

Bipolar transistors DP500F, also called junction type transistors, are a kind of transistors. Unlike field-effect transistors (unipolar transistors), DP500F are called bipolar because they have two kinds of carriers (hole, electron)
