Product Details

Description



Features:

Compatible with ANSI X3.263 TP-PMD draft standard
Allows use of Type 1 STP and Category 5 UTP cables
Requires a single +5V supply
Integrated transmitter and receiver with adaptive equal-ization circuit
Isolated TX and RX power supplies for minimum noise coupling
Loopback feature for board diagnostics
Digitally Synthesized transmit signal transition time con-trol for reduced EMI
Programmable transmit voltage amplitude
Suitable for 100BASE-TX Fast Ethernet and Twisted Pair FDDI applications



Pinout

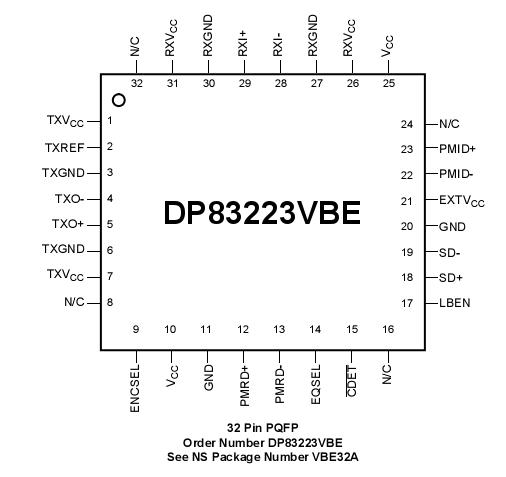

  Connection Diagram


Specifications

Supply Voltage (VCC ) ...........................................................................-0.5 V to 7.0 V
Recieved Power (RXVCC V) ....................................................................-0.5 V to 7.0 V
Transmitted Power (RXVCC V)................................................................ -0.5 V to 7.0V
Storage Temperature Range (TSTG )..................................................... -65 to 150
Power Dissipation (PD ) ...................................................................................1.575 W
IECl.................................................................................................................... -50 mA
Lead Temp. (TL ) (Soldering, 10 sec) ...................................................................260
ESD Rating......................................................................................................... 2.0 KV
(RZAP  = 1.5k, CZAP  = 120 pF)




Description

The DP83223 Twisted Pair Transceiver is an integrated circuit capable of driving and receiving three-level (MLT-3)
encoded datastreams. The DP83223 Transceiver is designed to interface directly with National Semiconductor's Fast Ethernet and FDDI Chip Sets or similar Physical Layer silicon allowing low cost data links over copper based media. The DP83223 allows links of up to 100 meters over Shielded Twisted Pair (Type-1A STP) and Category-5 datagrade Unshielded Twisted Pair (Cat-5UTP) or equivalent. The DP83223 is available in a 28 pinPLCC package and a 32 pin PQFP package.
