Five Points

Part Number: DP8459









Description: The DP8459 Data Synchronizer is an integrated phase locked loop circuit which has been designed for application in magn...


Urgent Purchase

DP8459 General Description


The DP8459 Data Synchronizer is an integrated phase locked loop circuit which has been designed for application in magnetic hard disk, flexible (floppy) disk, optical disk, and tape drive memory systems for data re-synchronization and clock recovery with any standard recording code, operating to 25 Mb/s. The DP8459 is provided in a 28-pin PCC package. Zero phase start is employed during both data and reference clock lock sequences for rapid acquisition. An optional (Customer-controlled) synchronization field frequency-acquisition feature guarantees lock, accommodating the preamble types used with GCR (Group Code Recording), MFM (Modified Frequency Modulation), the [1,N] run length limited (RLL) codes, and either of the standard 2,7 RLL codes. Precise synchronization window generation is achieved via an internal, self-aligning delay line which remains accurate independent of temperature, power supply, external component and IC process variations. The DP8459 also incorporates a digitally controlled ( MICROWIRE ™ bus compatible) strobe function with 5-bit resolution which allows for margin testing, error recovery routines, and precise window calibration. The PLL filter resides external to the chip, with two ports provided to allow significant design flexibility. Synchronization pattern detection circuitry issues a PREAMBLE DETECTED signal when a pre-determined length of the user-selected pattern is encountered. All digital input and output signals are TTL compatible and a single, +5V power supply is required. The DP8459V is offered as a DP8459V-10 (250 Kbit/sec thru 10 Mbits/sec) or DP8459V-25 (250 Kbits/sec thru 25 Mbit/sec), see AC Electrical Characteristics.

DP8459 Maximum Ratings

Supply Voltage                                                  7V
TTL Inputs                                                         7V
Output Voltages                                                7V
Input Current
    (RNOM, RBOOST, CPO, VCOI, TEF)             2 mA
Storage Temperature              −65°C to +150°C
Operating Temperature Range        0°C to +70°C
ESD Susceptibility ( Note 3 )                         1500V

DP8459 Features

` Fully integrated dual-gain PLL
` Zero phase start lock sequence
` 250 Kbit/sec25 Mbit/sec data rate range
` Frequency lock capability (optional) for all standard recording codes
` Digital window strobe control, 5-bit resolution
` Two-port PLL filter network
` PLL free-run (Coast) control for optical disk defects
` Synchronization pattern (preamble lock) detection
` Non-glitching multiplexed read/write clock output
` +5V supply
` DP8459 supplied in 28-pin plastic chip carrier (PCC) and 40-pin TapePak packages

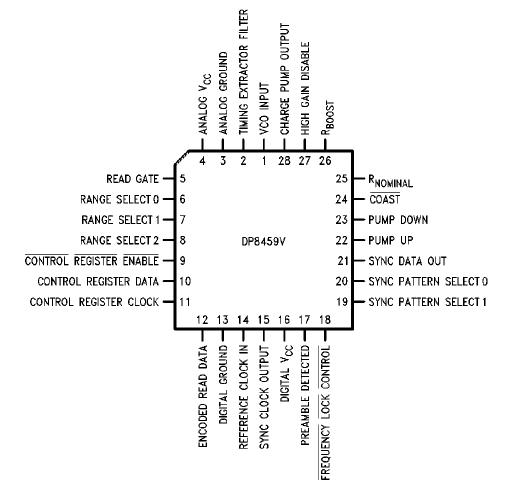

DP8459 Connection Diagram

DP8459 Connection Diagram
