DS1100L

Features: · All-Silicon Timing Circuit· Five Taps Equally Spaced· Delays are Stable and Precise· Both Leading- and Trailing-Edge Accuracy· 3.3V Version of the DS1100· Low-Power CMOS· TTL-/CMOS-compatible· Vapor-Phase and IR Solderable· Custom Delays Available· Fast-Turn Prototypes· Delays Specifie...

product image

DS1100L Picture
See larger image
SeekIC No. : 004328414 Detail

DS1100L: Features: · All-Silicon Timing Circuit· Five Taps Equally Spaced· Delays are Stable and Precise· Both Leading- and Trailing-Edge Accuracy· 3.3V Version of the DS1100· Low-Power CMOS· TTL-/CMOS-compa...

DS1100L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DS1100L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· All-Silicon Timing Circuit
· Five Taps Equally Spaced
· Delays are Stable and Precise
· Both Leading- and Trailing-Edge Accuracy
· 3.3V Version of the DS1100
· Low-Power CMOS
· TTL-/CMOS-compatible
· Vapor-Phase and IR Solderable
· Custom Delays Available
· Fast-Turn Prototypes
· Delays Specified Over Both Commercial and Industrial Temperature Ranges


Pinout

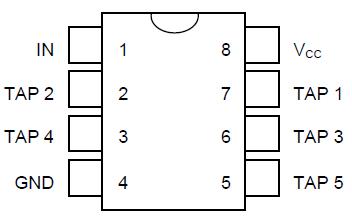

Connection Diagram


Specifications

Voltage on Any Pin Relative to Ground                         -0.5V to +6.0V
Operating Temperature Range                                     -40 to +85
Storage Temperature Range                                      -55 to +125
Soldering Temperature          See IPC/JEDEC J-STD-020A Specification
Short-Circuit Output Current                                  50mA for 1 second


Description

The DS1100L is a 3.3V version of the DS1100. It is characterized for operation over the range 3.0V to 3.6V. The DS1100L series delay lines have five equally spaced taps providing delays from 4ns to 500ns. These devices are offered in surface-mount packages to save PC board area. Low cost and superior reliability over hybrid technology is achieved by the combination of a 100% silicon delay line and industry-standard SOP and SO packaging. The DS1100L 5-tap silicon delay line reproduces the inputlogic state at the output after a fixed delay as specified by the extension of the part number after the dash. The DS1100L is designed to reproduce both leading and trailing edges with equal precision. Each tap is capable of driving up to ten 74LS loads.

Dallas Semiconductor can customize standard products to meet special needs.
