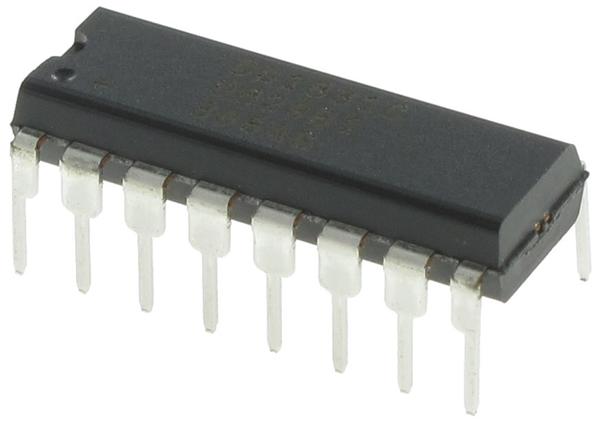

See larger image

SeekIC No. : 00542572 Detail

DS1831C+: Supervisory Circuits 3.3/5V Multisupply MicroMonitor

DS1831C+ Data Sheet

US $ 2.14~4.6 / Piece | Get Latest Price

Part Number:: DS1831C+
Mfg:: Maxim Integrated Products
Supply Ability:: 5000

Price Break

Qty
0~1
1~25
25~50
50~100

Unit Price
$4.6
$3.22
$2.33
$2.14

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

DS1800 evaluate
Features: Ultra-low power consumption Operates from 3V or 5V supplies Two digitally controlled, 12...
DS1800/2000 evaluate
SpecificationsTotal Max Power: 2,000 W Total Max Current: 164.2 A Input Voltage: 90 V to 264...
DS1800-3 evaluate
US $374 - 388.39 / Piece

Linear and Switching Power Supplies 12V output, 1800W 1U x 4.2" x 11"

Product Details

Quick Details

Number of Voltages Monitored :	2	Monitored Voltage :	2.5 V, 3 V, 3.3 V
Undervoltage Threshold :	2.8 V, 2.125 V	Overvoltage Threshold :	2.97 V, 2.375 V
Output Type :	Active Low, Open Drain	Manual Reset :	Resettable
Watchdog :	No Watchdog	Battery Backup Switching :	No Backup
Power-Up Reset Delay (Typ) :	2000 ms	Supply Voltage - Max :	5.5 V
Supply Voltage - Min :	1 V	Supply Current (Typ) :	100 uA, 85 uA
Maximum Operating Temperature :	+ 85 C	Package / Case :	PDIP N
Packaging :	Tube

Description

Maximum Power Dissipation :
Mounting Style :
Battery Backup Switching : No Backup
Supply Voltage - Max : 5.5 V
Maximum Operating Temperature : + 85 C
Output Type : Active Low, Open Drain
Manual Reset : Resettable
Watchdog : No Watchdog
Supply Voltage - Min : 1 V
Number of Voltages Monitored : 2
Packaging : Tube
Package / Case : PDIP N
Power-Up Reset Delay (Typ) : 2000 ms
Monitored Voltage : 2.5 V, 3 V, 3.3 V
Undervoltage Threshold : 2.8 V, 2.125 V
Overvoltage Threshold : 2.97 V, 2.375 V
Supply Current (Typ) : 100 uA, 85 uA

Parameters:

Technical/Catalog Information	DS1831C+
Vendor	Dallas Semiconductor
Category	Integrated Circuits (ICs)
Output	Open Drain or Open Collector
Reset	Active Low
Package / Case	16-DIP
Packaging	Tube
Number of Voltages Monitored	2
Reset Timeout	10 ms; 100 ms; 1,000 ms Minimum
Type	Multi-Voltage Supervisor
Voltage - Threshold	2.5V, 3.3V
Operating Temperature	-40°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	DS1831C+ DS1831C+
