DS2141A

Product :
Number of Transceivers :
Data Rate :
Packaging : Tube
Supply Current (Max) : 10 mA
Mounting Style : Through Hole
Maximum Operating Temperature : + 70 C
Package / Case : PDIP-40


Features:

  DS1/ISDN-PRI framing transceiver
   Frames to D4, ESF, and SLC-96 formats
   Parallel control port
  Onboard, dual two-frame elastic store slipbuffers
   Extracts and inserts robbed-bit signaling
   Programmable output clocks
   Onboard FDL support circuitry
   5V supply; low-power CMOS
   Available in 40-pin DIP and 44-pin PLCC(DS2141Q)
   Compatible with DS2186 Transmit LineInterface, DS2187 Receive Line Interface,DS2188 Jitter Attenuator, DS2290T1Isolation Stik, and DS2291 T1 Long LoopStik

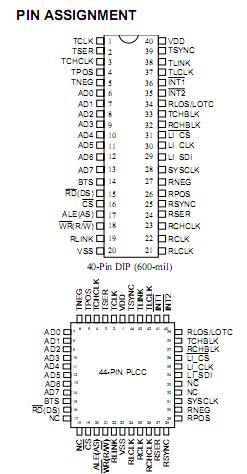

Pinout




Specifications

Voltage on Any Pin Relative to Ground ......................-1.0V to +7.0V
Operating Temperature .................................................. 0 to 70
Storage Temperature  ..............................................-55 to +125
Soldering Temperature ................................... 260 for 10 seconds


Description

The DS2141A is a comprehensive, software-driven T1 framer. It is meant to act as a slave or coprocessorto amicrocontroller or microprocessor. Quick access via the parallel control port allows a single micro tohandle many T1 lines. The DS2141A is very flexible and can be configured into numerous orientationsvia software. The software orientation of the device allows the user to modify their design to conform tofuture T1 specification changes. Thecontroller contains a set of 62 8-bit internal registers which the usercan access. These internal registers are used to configure the device and obtain information from the T1


Parameters:

Technical/Catalog Information	DS2141A
Vendor	Maxim Integrated Products
Category	Integrated Circuits (ICs)
Controller Type	T1 Controller
Interface	Parallel/Serial
Voltage - Supply	4.5 V ~ 5.5 V
Current - Supply	10mA
Package / Case	40-DIP (600 mil)
Packaging	Tube
Operating Temperature	0°C ~ 70°C
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	DS2141A DS2141A
