Part Number: DS3696

MFG: DIP

Package Cooled: DALLAS

D/C: 04+

Description: The DS3695, DS3696, and DS3697 are high speed differen-tial TRI-STATE bus/line transceivers/repeaters design...

DS3696 General Description

The DS3695, DS3696, and DS3697 are high speed differen-tial TRI-STATE bus/line transceivers/repeaters designed to meet the requirements of EIAstandard RS485 with extended common mode range (+12V to -7V), for multipoint data transmission.

The driver and receiver outputs feature TRI-STATE capabil-ity. The driver outputs remain in TRI-STATE over the entire common mode range of +12V to -7V. Bus faults that cause excessive power dissipation within the device trigger a ther-mal shutdown circuit, which forces the driver outputs into the high impedance state. The DS3696 provides an output pin TS (thermal shutdown) which reports the occurrence of the thermal shutdown of the device. This is an "open collector"pinwithaninternal10k?pull-upresistor.Thisallowstheline fault outputs of several devices to be wire OR-ed.

BothAC and DC specifications are guaranteed over the 0 to 70 temperature and 4.75V to 5.25V supply voltage range.

DS3696 Maximum Ratings

If Military/Aerospace specified devices are required,pleasecontacttheNationalSemiconductorSalesOffice/Distributors for availability and specifications.
Supply Voltage, V_CC                                                          7V
Control Input Voltages                                                        7V
Driver Input Voltage                                                           7V
Driver Output Voltages                                           +15V/-10V
Receiver Input Voltages(DS3695, DS3696)             +15V/-10V
Receiver Common Mode Voltage(DS3697)                      ±25V
Receiver Output Voltage                                                   5.5V
Continuous Power Dissipation @ 25
N Package                                                       1.07W (Note4)
Storage Temperature Range                            -65to+150
Lead Temperature (Soldering, 4sec.)                             260

DS3696 Features

Meets EIA standard RS485 for multipoint bus transmission and is compatible with RS-422
15 ns driver propagation delays with 2 ns skew (typical)
Single +5V supply
-7V to +12V bus common mode range permits ±7V ground difference between devices on the bus
Thermal shutdown protection
High impedance to bus with driver in TRI-STATE or with power off, over the entire common mode range allows the unused devices on the bus to be powered down
Combined impedance of a driver output and receiver input is less than one RS485 unit load, allowing up to 32 transceivers on the bus
70 mV typical receiver hysteresis

DS3696 Connection Diagram

DS3696 datasheet

DS3696
PDF/DataSheet Download

Datasheet: DS3696
File Size: 317553 KB
Manufacturer: NSC [National Semiconductor]
Click here to Download

·DS3
Linear
Bipolar Input 24-Bit A/D Converter Accepts ±2.5V Inputs
68288 KB
·DS3030W
MAXIM
3.3V、单芯片、256kb非易失SRAM, 带有时钟
311085 KB
·DS3030W-100
MAXIM
3.3V、单芯片、256kb非易失SRAM, 带有时钟
311085 KB
·DS3045W
MAXIM [Maxim Integrated Products]
3.3V Single-Piece 1Mb Nonvolatile SRAM with Clock
564235 KB
·DS3045W-100
MAXIM [Maxim Integrated Products]
3.3V Single-Piece 1Mb Nonvolatile SRAM with Clock
564235 KB
·DS3050W
MAXIM [Maxim Integrated Products]
3.3V Single-Piece 4Mb Nonvolatile SRAM with Clock
568871 KB
·DS3050W-100
MAXIM [Maxim Integrated Products]
3.3V Single-Piece 4Mb Nonvolatile SRAM with Clock
568871 KB
·DS3065W
MAXIM [Maxim Integrated Products]
3.3V Single-Piece 8Mb Nonvolatile SRAM with Clock
328968 KB

Related Part Number

DS3696 Relative Products

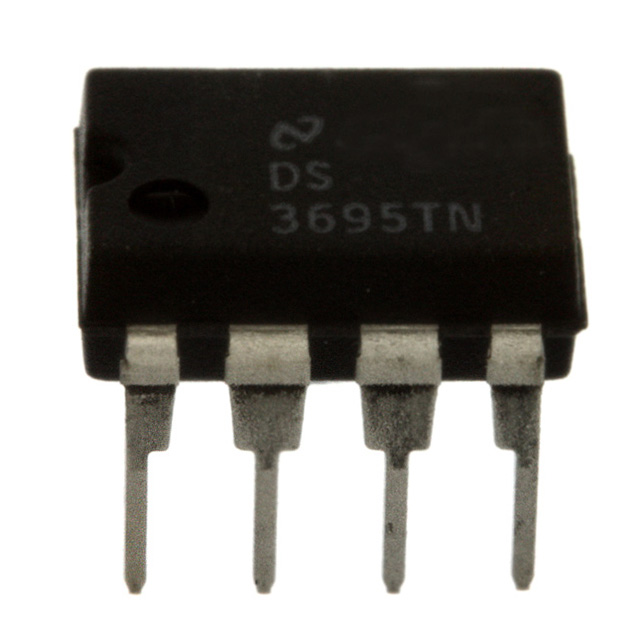

DS3695TN/NOPB
IC TXRX MULT PT RS485/422 8-DIP
DS3695T
The DS3695, DS3696, and DS3697 are high speed differential TRI-STATE® bus/line transceivers/repeaters designed to meet the requirements of EIA standard RS485 with extended common mode range (+12V to -7V), for multipoint data transmission. The driver and...

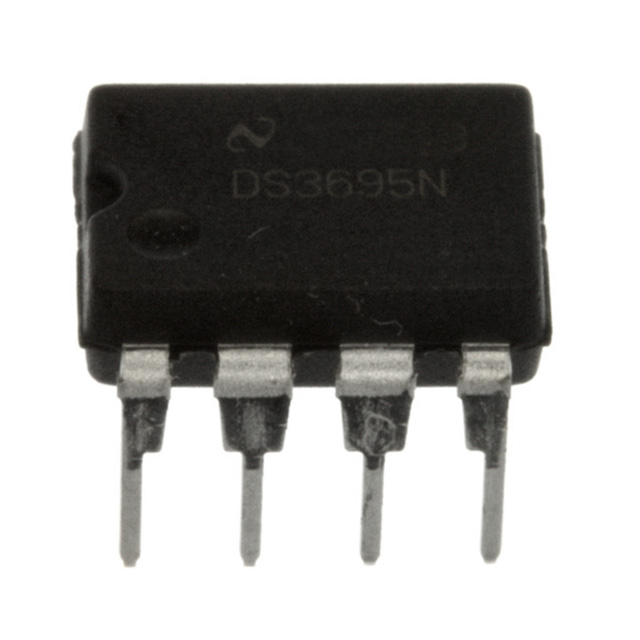

DS3695N/NOPB
IC TXRX MULT PT RS485/422 8-DIP
DS3695ATMX/NOPB
IC TXRX MULT PT RS485/422 8SOIC

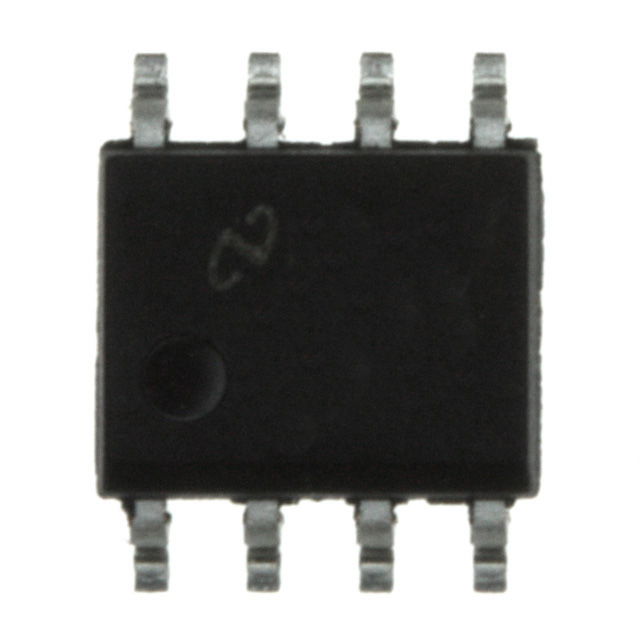

DS3695ATM/NOPB
