DS4077

Features:

 77.76MHz (fNOM) Frequency
3.135V to 3.465V Operation
Low Jitter: <1ps RMS
±69ppm Absolute Pull Range (APR)
LVCMOS Output Buffer
Minimum ±110ppm Tuning Range (+25°C)
Available in Commercial or Industrial Temperature Ranges
14mm x 9mm x 3.06mm Plastic LGA Package


Application

·Clock-Data Recovery in Telecom/Datacom Applications
·Data Retiming
·Reference Clock Generation in Base Stations and Wireless Applications

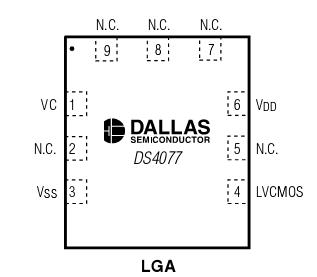

Pinout




Specifications

VC, V_DD, LVCMOS Output...........................................................................-0.3V, +3.6V
Operating Temperature Range (noncondensing) ..............................-40°C to +85°C
Junction Temperature......................................................................................+150°C
Thermal Resistance Junction to Ambient......................................................91.06°C/W
Junction to Case..........................................................................................44.51°C/W
Storage Temperature Range.............................................................-55°C to +125°C
Soldering Temperature (reflow, 2 passes max)....See IPC/JEDEC STD-020 Specification


Description

The DS4077 is an integrated voltage-controlled crystal oscillator (VCXO) module designed to provide reference clock generation in base stations, telecom/datacom, and wireless applications. The DS4077 is developed using a fundamental quartz crystal plus a unique integrated cir-cuit design. The internal fundamental quartz crystal determines the frequency of operation. Custom frequen-cies are available. Contact the factory for availability.

The DS4077 is designed for use with applications requir-ing low phase noise and jitter. Jitter performance of bet-ter than 1ps RMS is achieved over the 12kHz to 80MHz range. Phase noise performance of better than -130dBc/Hz at 1kHz is achieved with this design.
