General Description
DS76KHz General Description
The DS76KHz is a temperature-compensated crystal oscillator (TCXO) with an output frequency of 76.8 kHz. This device is available in commercial and industrial temperature versions, DS76KHz and DS76KHz-N respectively.
The DS76KHz requires four pins for operation: VCC, GND, VBAT and 76KHz OUT. See Figures 1, 2 and 3 for connection schemes. Power is applied via VCC and GND, while VBAT is used to maintain the 76KHz output in the absence of power. The output is accurate to ±7.5 ppm from -40°C to +85°C and ±2 ppm from 0°C to 40°C.
The DS76KHz is packaged in a small 36-pin SMD, utilizing Ball Grid Array (BGA) technology, with dimensions 0.400 inches wide, 0.450 inches long, and 0.180 inches high. The recommended land pattern layout is shown on page 5. The additional board space required is negligible in most applications and therefore the recommended land pattern layout should be implemented on all new designs and future board revisions to satisfy applications requiring better accuracy.
DS76KHz Maximum Ratings
Voltage on Any Pin Relative to Ground -3.0V to +7.0V
Operating Temperature 0°C to 70°C - Commercial
-40°C to +85°C - Industrial
Storage Temperature -40°C to +85°C
Soldering Temperature +260°C for 10 seconds (2 times max.)
Operating Temperature 0°C to 70°C - Commercial
-40°C to +85°C - Industrial
Storage Temperature -40°C to +85°C
Soldering Temperature +260°C for 10 seconds (2 times max.)
DS76KHz Features
* Accurate to ±7.5 ppm (-40°C to +85°C)
* Accurate to ±2 ppm (0°C to 40°C)
* Battery back up for continuous output
* VBAT operating voltage 2.7 to 5.5 volts (with VCC grounded)
* VCC operating voltage 4.5 to 5.5 volts
* Operating temperature range:
COM: 0°C to 70°C
IND: -40°C to +85°C
* No calibration required
* Low power consumption
* Surface mountable
* Accurate to ±2 ppm (0°C to 40°C)
* Battery back up for continuous output
* VBAT operating voltage 2.7 to 5.5 volts (with VCC grounded)
* VCC operating voltage 4.5 to 5.5 volts
* Operating temperature range:
COM: 0°C to 70°C
IND: -40°C to +85°C
* No calibration required
* Low power consumption
* Surface mountable
DS76KHZ
PDF/DataSheet Download
- Datasheet: DS76KHZ
- File Size: 107275 KB
- Manufacturer: DALLAS [Dallas Semiconducotr]
- Click here to Download
- ·DS7
- Linear
- A Low Cost Dynamic VID Power Supply for Pentium? III Processors
- 68288 KB
- ·DS75
- DALLAS [Dallas Semiconducotr]
- 2.Wire Thermal Watchdog
- 246340 KB
- ·DS75-08B
- IXYS [IXYS Corporation]
- Rectifier Diode Avalanche Diode
- 42406 KB
- ·DS75107
- NSC [National Semiconductor]
- Dual Line Receivers
- 232715 KB
- ·DS75107AM
- NSC [National Semiconductor]
- Dual Line Receivers
- 183055 KB
- ·DS75107AN
- NSC [National Semiconductor]
- Dual Line Receivers
- 183055 KB
- ·DS75107J
- NSC [National Semiconductor]
- Dual Line Receivers
- 183055 KB
- ·DS75107M
- NSC [National Semiconductor]
- Dual Line Receivers
- 232715 KB
DS76KHz Relative Products
DS7640
The DS7640 and DS8640 are quad 2-input receivers designed for use in bus organized data transmission systems interconnected by terminated 120X impedance lines. The external termination is intended to be 180X resistor from the bus to the a5V logic supply toge...

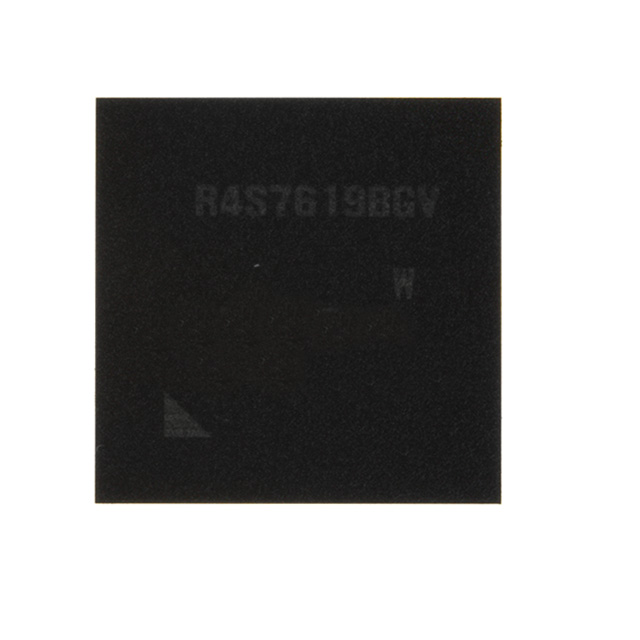

DS76190W125BGV
IC SUPERH MPU ROMLESS 176-LFBGA

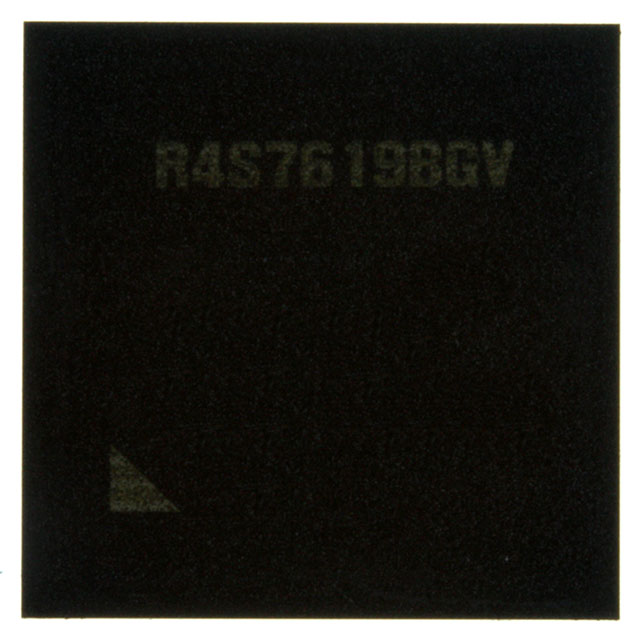

DS76190N125BGV
IC SH MPU ROMLESS 176LFBGA

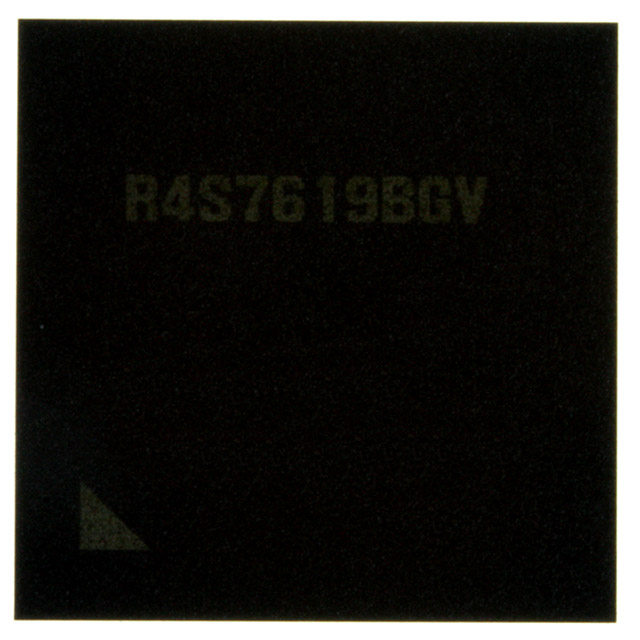

DS76190B125BGV
