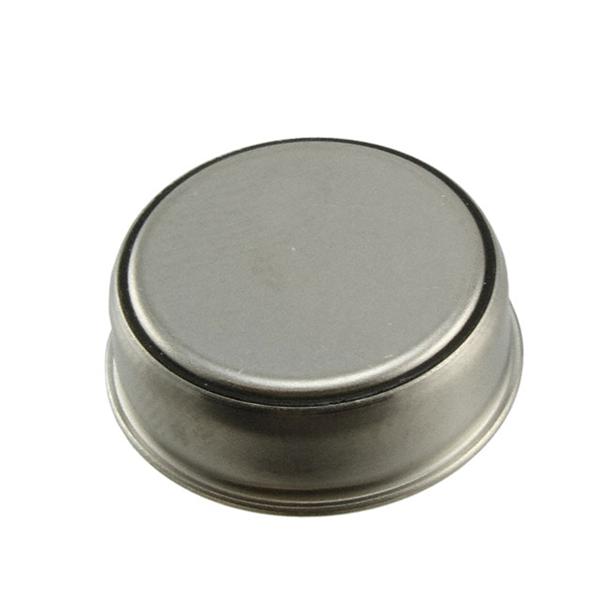

DS9092R Product Image

DS9 Series Datasheet download

Five Points

Part Number: DS9092R



MFG: Dallas

Package Cooled: IBACC

D/C: 8

Description: The DS9092R iButton Port provides the electrical contact necessary for mating remotely located iButton...


Urgent Purchase

DS9092R General Description


The DS9092R iButton Port provides the electrical contact necessary for mating remotely located iButtons or other 1-Wire MicroLAN devices with reader/writers. The iButton port is available with groove (DS9092RG) and without (DS9092R). For applications where only a touch contact is needed either version will perform well. For dwelled-contact applications the DS9092R (without groove) is the preferred choice for use with the DS1402BP/DS1402RP MicroLAN cables. The grooved DS9092RG works best with the DS1402D-type cables featuring a Blue Dot Receptor.

DS9092R Features

· Empty stainless steel F5 MicroCan with opening in rear and solder tabs
· Acts as a touch contact for remotely located 1-WireTM devices
· Together with DS2404S-C01 makes complex functions involving microcontrollers behave as if they were iButtons
· DS9092R for DS9100-based iButton probes
· DS9092RG grooved version for Blue Dot Receptors
