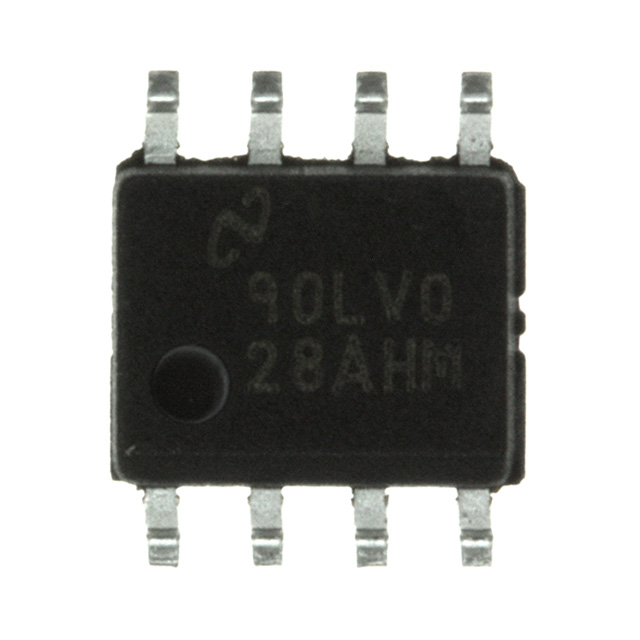

DS90LV028AQ

The DS90LV028AQ is a dual CMOS differential line receiver designed for applications requiring ultra low power dissipation, low noise and high data rates. The device is designed to support data rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology.

The features of DS90LV028AQ can be summarized as:(1)AECQ-100 Grade 1; (2)-40°C to +125°C operating temperature range; (3)>400 Mbps (200 MHz) switching rates; (4)50 ps differential skew (typical); (5)0.1 ns channel-to-channel skew (typical); (6)2.5 ns maximum propagation delay; (7)3.3V power supply design; (8)Flow-through pinout; (9)Power down high impedance on LVDS inputs; (10)Low Power design (18mW @ 3.3V static); (11)LVDS inputs accept LVDS/CML/LVPECL signals; (12)Conforms to ANSI/TIA/EIA-644 Standard; (13)Available in SOIC package.

The absolute maximum ratings of DS90LV028AQ are:(1)Supply Voltage (VDD):-0.3V to 4.0V; (2)input voltage (RIN+, RIN-):-0.3V to +3.9V; (3)output voltage (ROUT):-0.3V to VCC+0.3V; (4)Maximum Package Power Dissipation @ +25°C:M Package..1068 mW,Derate M Package..9.71 mW/°C above +25°C; (5)Package Thermal Resistance (4-Layer, 2 oz. Cu, JEDEC):JA..103.0°C/Watt,JC..41.0°C/Watt; (6)Storage Temperature:-65°C to +150°C; (7)Lead Temperature Range Soldering(4 sec.):+260°C; (8)Maximum Junction Temperature:+135°C; (9)HBM 8kV; (10)MM 250V; (11)CDM 1250V.

If you want to know more information such as the electrical characteristics about the DS90LV028AQ, please download the datasheet in www.seekic.com or www.chinaicmart.com .
