Purchase DS90LV031A, In-stock DS90LV031A From SeekIC.
MFG:NS Package Cooled:SOP16
Part Number: DS90LV031A
MFG: NS
Package Cooled: SOP16
Description: The DS90LV031A is a quad CMOS differential line driver designed for applications re...
- Table of contents:
DS90LV031A
-
Suppliers
DataSheet
General Description
DS90LV031A General Description
The DS90LV031A is a quad CMOS differential line driver designed for applications requiring ultra low power dissipation and high data rates. The device is designed to support data rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology.
The DS90LV031A accepts low voltage TTL/CMOS input levels and translates them to low voltage (350 mV) differential output signals. In addition the driver supports a TRI-STATE® function that may be used to disable the output stage, disabling the load current, and thus dropping the device to an ultra low idle power state of 13 mW typical.
The EN and EN* inputs allow active Low or active High control of the TRI-STATE outputs. The enables are common to all four drivers. The DS90LV031A and companion line receiver (DS90LV032A) provide a new alternative to high power psuedo-ECL devices for high speed point-to-point interface applications.
DS90LV031A Maximum Ratings
Supply Voltage (VCC) −0.3V to +4V
Input Voltage (DIN) −0.3V to (VCC + 0.3V)
Enable Input Voltage (EN, EN*) −0.3V to (VCC + 0.3V)
Output Voltage (DOUT+, DOUT−) −0.3V to +3.9V
Short Circuit Duration
(DOUT+, DOUT−) Continuous
Maximum Package Power Dissipation @ +25°C
M Package 1088 mW
MTC Package 866 mW
W Package 845 mW
Derate M Package 8.5 mW/°C above +25°C
Derate MTC Package 6.9 mW/°C above +25°C
Derate W Package 6.8 mW/°C above +25°C
Storage Temperature Range −65°C to +150°C
Lead Temperature Range
Soldering (4 sec.) +260°C
Maximum Junction Temperature +150°C
ESD Rating (Note 10)
(HBM, 1.5 kW, 100 pF) ³ 6 kV
Input Voltage (DIN) −0.3V to (VCC + 0.3V)
Enable Input Voltage (EN, EN*) −0.3V to (VCC + 0.3V)
Output Voltage (DOUT+, DOUT−) −0.3V to +3.9V
Short Circuit Duration
(DOUT+, DOUT−) Continuous
Maximum Package Power Dissipation @ +25°C
M Package 1088 mW
MTC Package 866 mW
W Package 845 mW
Derate M Package 8.5 mW/°C above +25°C
Derate MTC Package 6.9 mW/°C above +25°C
Derate W Package 6.8 mW/°C above +25°C
Storage Temperature Range −65°C to +150°C
Lead Temperature Range
Soldering (4 sec.) +260°C
Maximum Junction Temperature +150°C
ESD Rating (Note 10)
(HBM, 1.5 kW, 100 pF) ³ 6 kV
DS90LV031A Features
>400 Mbps (200 MHz) switching rates
0.1 ns typical differential skew
0.4 ns maximum differential skew
2.0 ns maximum propagation delay
3.3V power supply design
±350 mV differential signaling
Low power dissipation (13mW at 3.3V static)
Interoperable with existing 5V LVDS devices
Compatible with IEEE 1596.3 SCI LVDS standard
Compatible with TIA/EIA-644 LVDS standard
Industrial and Military operating temperature range Available in SOIC, TSSOP and Cerpack surface mount packaging
Standard Microcircuit Drawing (SMD) 5962-9865201
0.1 ns typical differential skew
0.4 ns maximum differential skew
2.0 ns maximum propagation delay
3.3V power supply design
±350 mV differential signaling
Low power dissipation (13mW at 3.3V static)
Interoperable with existing 5V LVDS devices
Compatible with IEEE 1596.3 SCI LVDS standard
Compatible with TIA/EIA-644 LVDS standard
Industrial and Military operating temperature range Available in SOIC, TSSOP and Cerpack surface mount packaging
Standard Microcircuit Drawing (SMD) 5962-9865201

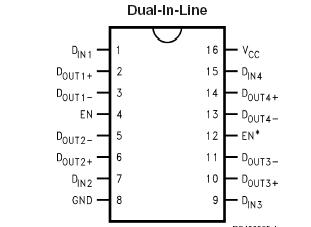

DS90LV031A Connection Diagram
DS90LV031A
PDF/DataSheet Download
- Datasheet: DS90LV031A
- File Size: 185806 KB
- Manufacturer: NSC [National Semiconductor]
- Click here to Download
