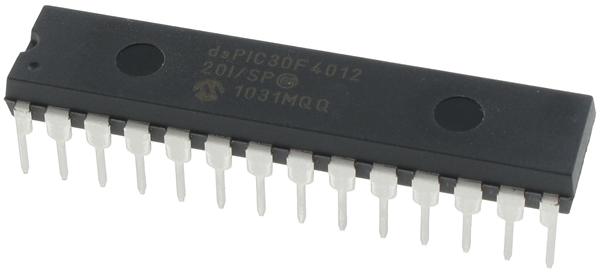

DSPIC30F4012-20I/SP

Device Million Instructions per Second :
Operating Supply Voltage :
Data Bus Width : 16 bit
Program Memory Size : 48 KB
Core : dsPIC
Maximum Operating Temperature : + 85 C
Number of Timers : 5
Package / Case : SPDIP-28
Mounting Style : Through Hole
Maximum Clock Frequency : 20 MHz
Data RAM Size : 2 KB
Number of Programmable I/Os : 20


Parameters:

Technical/Catalog Information	DSPIC30F4012-20I/SP
Vendor	Microchip Technology
Category	Integrated Circuits (ICs)
Program Memory Size	48KB (48K x 8)
RAM Size	2K x 8
Number of I /O	20
Package / Case	28-DIP (300 mil)
Speed	20 MIPS
Controller Series	dsPIC30F
Oscillator Type	Internal
Packaging	Tube
Program Memory Type	FLASH
EEPROM Size	1K x 8
Core Processor	dsPIC
Data Converters	A/D 6x10b
Core Size	16-Bit
Operating Temperature	-40°C ~ 85°C
Connectivity	CAN, I²C, SPI, UART/USART
Peripherals	Brown-out Detect/Reset, Motor Control PWM, POR, PWM, WDT
Voltage - Supply (Vcc/Vdd)	2.5 V ~ 5.5 V
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
