Part Number: DT74L
Description: The LVCH162244A 16-bit buffer/driver is built using advanced dual metal CMOS technology. The LVCH162244A is desig...
- Table of contents:
DT74L
-
Suppliers
DataSheet
General Description
DT74L General Description
The LVCH162244A 16-bit buffer/driver is built using advanced dual metal CMOS technology. The LVCH162244A is designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. This device provides true outputs and symmetrical active-low output-enable (OE) inputs.
All pins of this 16-bit buffer/driver can be driven from either 3.3V or 5V devices. This feature allows the use of this device as a translator in a mixed 3.3V/5V supply system.
The LVCH162244A has series resistors in the device output structure which will significantly reduce line noise when used with light loads. This driver has been developed to drive ±12mA at the designated threshold levels.
The LVCH162244A has "bus-hold" which retains the inputs' last state whenever the input goes to a high impedance. This prevents floating inputs and eliminates the need for pull-up/down resistors.
DT74L Maximum Ratings
| Symbol | Description | Max | Unit |
| VTERM | Terminal Voltage with Respect to GND | 0.5 to +6.5 | V |
| TSTG | Storage Temperature | 65 to +150 | °C |
| IOUT | DC Output Current | 50 to +50 | mA |
| IIK IOK |
Continuous Clamp Current, VI < 0 or VO < 0 |
50 | mA |
| ICC ISS |
Continuous Current through each VCC or GND |
±100 | mA |
DT74L Features
* Typical tSK(o) (Output Skew) < 250ps
* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using
machine model (C = 200pF, R = 0)
*VCC = 3.3V ± 0.3V, Normal Range
*VCC = 2.7V to 3.6V, Extended Range
* CMOS power levels (0.4 W typ. static)
* All inputs, outputs, and I/O are 5V tolerant
* Available in SSOP and TSSOP packages
* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using
machine model (C = 200pF, R = 0)
*VCC = 3.3V ± 0.3V, Normal Range
*VCC = 2.7V to 3.6V, Extended Range
* CMOS power levels (0.4 W typ. static)
* All inputs, outputs, and I/O are 5V tolerant
* Available in SSOP and TSSOP packages
DT74L Typical Application
* 5V and 3.3V mixed voltage systems
* Data communication and telecommunication systems
* Data communication and telecommunication systems

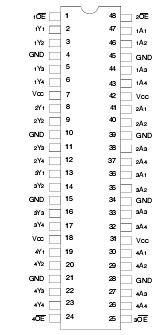

DT74L Connection Diagram
