DTA124ECA
-
Suppliers
DataSheet
General Description
DTA124ECA Maximum Ratings
| Parameter | symbol |
limits |
unit |
| Supply voltage | VCC | 50 | V |
| Input voltage | VIN | 40~+10V | V |
| Output current | IO | -30 | mA |
| IC(Max.) | -100 | ||
| Power dissipation | Pd | 200 | mW |
| Junction temperature | Tj | 150 | °C |
| Storage temperature | Tstg | 55~+150 | °C |
DTA124ECA Features
1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
2) The bias resistors consist of thinfilm resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely
3) Only the on/ off conditions need tobe set for operation, making device design easy.
2) The bias resistors consist of thinfilm resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely
3) Only the on/ off conditions need tobe set for operation, making device design easy.

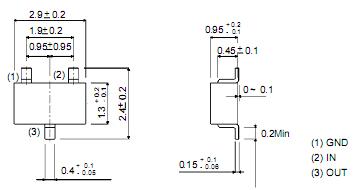

DTA124ECA Connection Diagram
DTA124ECA
PDF/DataSheet Download
- Datasheet: DTA124ECA
- File Size: 81904 KB
- Manufacturer: ROHM [Rohm]
- Click here to Download
