DTB133HS

Features: 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors.2) The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input, and parasitic effects are almost completely eliminat...

product image

DTB133HS Picture
See larger image
SeekIC No. : 004330013 Detail

DTB133HS: Features: 1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors.2) The bias resistors consist of thin-film resistors with complete is...

DTB133HS Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DTB133HS
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors.
2) The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input, and parasitic effects are almost completely eliminated.
3) Only the on/off conditions need to be set for operation, making device design easy.
4) Higher mounting densities can be achieved.


Pinout

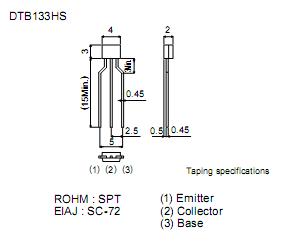

Connection Diagram




Specifications

Parameter Symbol Limits Unit
Supply voltage VCC -50 V
Input voltage VI -20 V
6
Output current IC -500 mA
Power
dissipation
 DTB133HK Pd 200 mW
DTB133HS 300
Junction temperature Tj 150 °C
Storage temperature Tstg −55 ~ +150 °C
