EA30QS06

Features: * TO-251AA Case* Low Forward Voltage drop* Low Power Loss* High Surge Capability* 40 Volts thru 100 Volts Types AvailablePinoutSpecifications Rating Symbol EA30QS06 Unit Repetitive Peak Reverse Voltage VRRM 60 V Non-repetitive Peak Reverse Voltage VRRM 65 ...

product image

EA30QS06 Picture
See larger image
SeekIC No. : 004330785 Detail

EA30QS06: Features: * TO-251AA Case* Low Forward Voltage drop* Low Power Loss* High Surge Capability* 40 Volts thru 100 Volts Types AvailablePinoutSpecifications Rating Symbol EA30QS06 Unit Rep...

EA30QS06 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EA30QS06
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* TO-251AA Case
* Low Forward Voltage drop
* Low Power Loss
* High Surge Capability
* 40 Volts thru 100 Volts Types Available

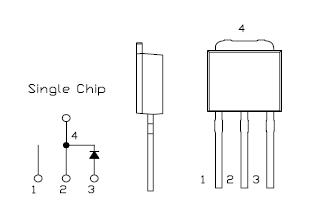

Pinout

Connection Diagram


Specifications

Rating Symbol
EA30QS06
Unit
Repetitive Peak Reverse Voltage VRRM
60
V
Non-repetitive Peak Reverse Voltage VRRM
65
V
Average Rectified
Output Current		 P.C.Board mounted * IO
1.3
Ta=36°C
50Hz Half Sine Wave
Resistive Load
A
-
3.0
Tc=123°C
RMS Forward Current IF(RMS)
4.71
A
Surge Forward Current IFSM
45
50Hz Half Sine Wave,1cycle,
Non-repetitive
A
Operating JunctionTemperature Range Tjw
- 40 to + 150
°C
Storage Temperature Range Tstg
- 40 to + 150
°C
