EA31FS2

Features: * TO-251AA Case* Ultra Fast Recovery* Low Forward Voltage drop* Low Power Loss* High Surge Capability* 200 Volts thru 600 Volts Types AvailablePinoutSpecifications Rating Symbol EA31FS2 Unit Repetitive Peak Reverse Voltage VRRM 200 V Non-repetitiv Peak Reverse V...

product image

EA31FS2 Picture
See larger image
SeekIC No. : 004330790 Detail

EA31FS2: Features: * TO-251AA Case* Ultra Fast Recovery* Low Forward Voltage drop* Low Power Loss* High Surge Capability* 200 Volts thru 600 Volts Types AvailablePinoutSpecifications Rating Symbol ...

EA31FS2 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EA31FS2
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* TO-251AA Case
* Ultra Fast Recovery
* Low Forward Voltage drop
* Low Power Loss
* High Surge Capability
* 200 Volts thru 600 Volts Types Available

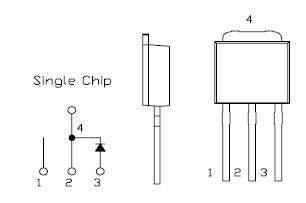

Pinout

Connection Diagram


Specifications

Rating Symbol
EA31FS2
Unit
Repetitive Peak Reverse Voltage VRRM
200
V
Non-repetitiv Peak Reverse Voltage VRRM
220
V
Average Rectified
Output Current		 P.C.Board mounted * IO
1.7
Ta=30°C
50Hz Half Sine Wave
Resistive Load
A
-
3.0
Tc=129°C
RMS Forward Current IF(RMS)
4.71
A
Surge Forward Current IFSM
45
50Hz Half Sine Wave,1cycle,
Non-repetitive
A
Operating JunctionTemperature Range Tjw
- 40 to + 150
°C
Storage Temperature Range Tstg
- 40 to + 150
°C
