Features:

Speed control for a 3-phase DC brushless motor is available with an external microprocessor.
Bottom arm circuits can be operated in 20kHz chopping frequency of PWM.

Pinout

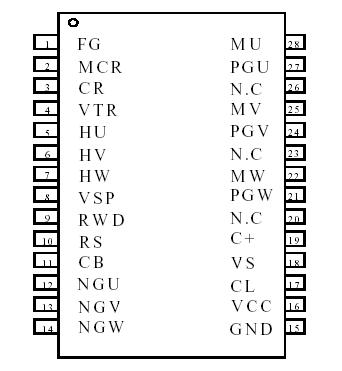

Connection Diagram

Specifications

No.	Items	Symbols	Terminal	Ratings	Unit	Condition
1	Output Device Breakdown Voltage	VSM	VS MU,MV,MW	500	V
2	Supply Voltage	VCC	VCC	18	V
3	Input Voltage	VIN	VSP,RS,RWD HU,HV,HW	-0.5 ~ VB+0.5	V
4	Operating Junction Temperature	Tjop		-20 ~ +125	°C	Note 1
5	Storage Temperature	Tstg		-40 ~ +150	°C

Description

(1) Type                  ECN3035F, ECN3036F
(2) Application        3-Phase DC Brushless Motor
(3) Structure           Monolithic IC
(4) Package            FP-28DJ(JEDEC)
