Product Details

Description



Features:

It can be controlled by PWM with 6 inputs from an external microprocessor.
6 logic inputs are compatible with 5V CMOS and LSTTL outputs.

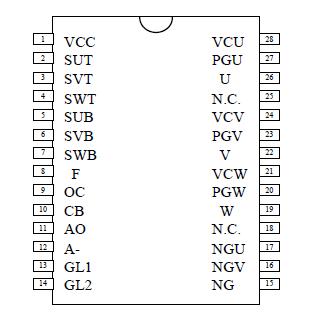

Pinout

Connection Diagram


Specifications

No. ITEMS SYMBOLS UNIT VALUES CONDITIONS
1 Output Device Breakdown voltage Vbv V 620 Between Vcu,v,w & GL1
2 GL2 terminal voltage Vgl2 V -5~Vcc Vcc=18Vmax at GL2=-5V
3 3 U,V,W terminal Voltage Vu,v,w V -5~600
4 Supply voltage Vcc V 20
5 Input voltage Vin V -0.5~Vcc+0.5
6 Operating Junction Temperature Tjop   -20~125
7 Storage Temperature Tstg   -40~150
