EDI88512CA

Features: Access Times of 15, 17, 20, 25, 35, 45, 55nsData Retention Function (LPA version)TTL Compatible Inputs and OutputsFully Static, No ClocksOrganized as 512Kx8Commercial, Industrial and Military Temperature Ranges32 lead JEDEC Approved Evolutionary PinoutCeramic Sidebrazed 600 mil DIP (Pack...

product image

EDI88512CA Picture
See larger image
SeekIC No. : 004333845 Detail

EDI88512CA: Features: Access Times of 15, 17, 20, 25, 35, 45, 55nsData Retention Function (LPA version)TTL Compatible Inputs and OutputsFully Static, No ClocksOrganized as 512Kx8Commercial, Industrial and Milit...

EDI88512CA Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EDI88512CA
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Access Times of 15, 17, 20, 25, 35, 45, 55ns
Data Retention Function (LPA version)
TTL Compatible Inputs and Outputs
Fully Static, No Clocks
Organized as 512Kx8
Commercial, Industrial and Military Temperature Ranges
32 lead JEDEC Approved Evolutionary Pinout
Ceramic Sidebrazed 600 mil DIP (Package 9)
Ceramic Sidebrazed 400 mil DIP (Package 326)
Ceramic 32 pin Flatpack (Package 344)
Ceramic Thin Flatpack (Package 321)
Ceramic SOJ (Package 140)
36 lead JEDEC Approved Revolutionary Pinout
Ceramic Flatpack (Package 316)
Ceramic SOJ (Package 327)
Ceramic LCC (Package 502)
Single +5V (±10%) Supply Operation

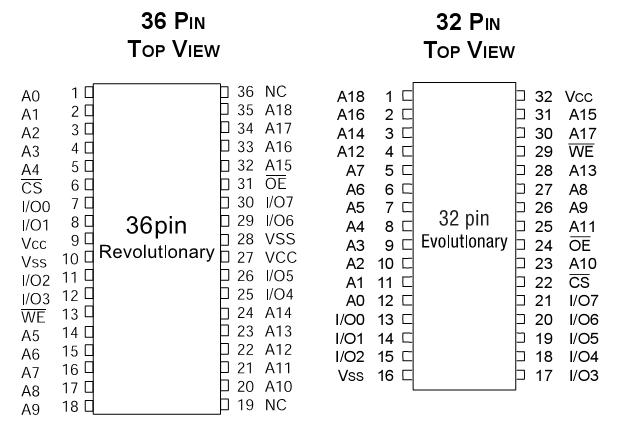

Pinout

Connection Diagram


Specifications

Parameter   Unit
Voltage on any pin relative to Vss -0.5 to 7.0 V
Operating Temperature TA (Ambient)
Commercial 0 to +70 °C
Industrial -40 to +85 °C
Military -55 to +125 °C
Storage Temperature, Plastic -65 to +150 °C
Power Dissipation 1.5 W
Output Current 20 mA
Junction Temperature, TJ 175 °C



Description

The EDI88512CA is a 4 megabit Monolithic CMOSStatic RAM.The 32 pin DIP pinout adheres to the JEDEC evolu-tionary standard for the four megabit device. All 32 pin packages are pin for pin upgrades for the single chip enable 128K x 8, the EDI88128CS. Pins 1 and 30 be-come the higher order addresses.

The 36 pin revolutionary pinout also adheres to the JEDEC standard for the four megabit device EDI88512CA. The cen-ter pin power and ground pins help to reduce noise in high performance systems. The 36 pin pinout also allows the user an upgrade path to the future 2Mx8.A Low Power version with Data Retention (EDI88512LPA) is also available for battery backed applications. Military product is available compliant to Appendix A of MIL-PRF-38535.
