EDL1216AASA

Features: Low voltage power supplyVDD: 2.5V ± 0.2V VDDQ: 1.8V ± 0.15V Wide temperature range (-25°C to 85°C) Programmable partial self refresh Programmable driver strength Programmable temperature compensated self refresh (Option) Deep power down mode Small package (54-ball FBGA (BGA)) Fully Synch...

product image

EDL1216AASA Picture
See larger image
SeekIC No. : 004333865 Detail

EDL1216AASA: Features: Low voltage power supplyVDD: 2.5V ± 0.2V VDDQ: 1.8V ± 0.15V Wide temperature range (-25°C to 85°C) Programmable partial self refresh Programmable driver strength Programmable temperature c...

EDL1216AASA Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EDL1216AASA
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low voltage power supply
                         VDD:  2.5V ± 0.2V
                         VDDQ:  1.8V ± 0.15V
Wide temperature range (-25°C to 85°C)
Programmable partial self refresh
Programmable driver strength
Programmable temperature compensated self refresh (Option)
Deep power down mode
Small package (54-ball FBGA (BGA))
Fully  Synchronous  Dynamic  RAM,  with  all  signals referenced to a positive clock edge
Pulsed interface
Possible to assert random column address in every cycle
Quad internal banks controlled by BA0 and BA1
Byte control by LDQM and UDQM
Wrap sequence = Sequential/ Interleave
/CAS latency (CL) = 2, 3
Automatic precharge and controlled precharge
Auto refresh and self refresh
*16 organization
4,096 refresh cycles/64ms
Burst  termination  by  Burst  stop  command  and Precharge command
FBGA(BGA) package is lead free solder (Sn-Ag-Cu)


Pinout

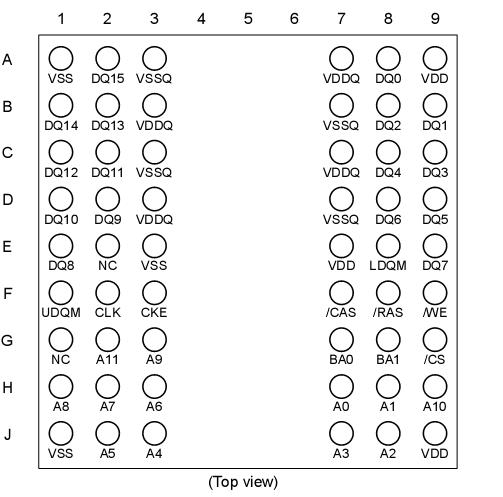

Connection Diagram


Specifications

Parameter Symbol Rating Unit Note
Voltage on any pin relative to VSS VT 0.5 to +3.6 V
Supply voltage relative to VSS VDD, VDDQ 0.5 to +3.6 V
Short circuit output current IOS 50 mA
Power dissipation PD 1.0 W
Operating ambient temperature TA 25 to +85 °C
Storage temperature Tstg 55 to +125 °C



Description

The EDL1216AA is a 128M bits Mobile RAM organized as 2,097,152 words * 16 bits * 4 banks.  The Mobile RAM achieved low power consumption and high-speed data transfer using the pipeline architecture.  All inputs and outputs are synchronized with the positive edge of the clock. This product is packaged in 54-ball FBGA (BGA(R) ).
