EDL5132CBMA

Features: Low voltage power supply VDD: 1.7V to 1.95V VDDQ: 1.7V to 1.95V Wide temperature range (-25°C to 85°C) Programmable Partial Array Self Refresh Programmable Driver Strength Auto Temperature Compensated Self Refresh by built-in temperature sensor. Deep power down mode Fully Synchronous Dyn...

product image

EDL5132CBMA Picture
See larger image
SeekIC No. : 004333867 Detail

EDL5132CBMA: Features: Low voltage power supply VDD: 1.7V to 1.95V VDDQ: 1.7V to 1.95V Wide temperature range (-25°C to 85°C) Programmable Partial Array Self Refresh Programmable Driver Strength Auto Temperature...

EDL5132CBMA Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EDL5132CBMA
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low voltage power supply
VDD: 1.7V to 1.95V
VDDQ:  1.7V to 1.95V
Wide temperature range (-25°C to 85°C)
Programmable Partial Array Self Refresh
Programmable Driver Strength
Auto Temperature Compensated Self Refresh by built-in temperature sensor.
Deep power down mode
Fully Synchronous Dynamic RAM, with all signals referenced to a positive clock edge
Pulsed interface
Possible to assert random column address in every cycle
Quad internal banks controlled by BA0 and BA1
Byte control by DQM
Wrap sequence = Sequential/ Interleave
/CAS latency (CL) = 2, 3
Automatic precharge and controlled precharge
Auto refresh and self refresh
*32 organization
8,192 refresh cycles/64ms
Burst termination by Burst stop command and Precharge command
FBGA package with lead free solder (Sn-Ag-Cu)


Pinout

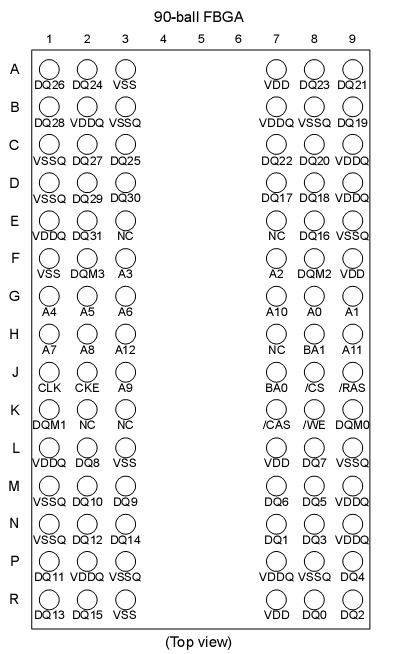

Connection Diagram


Specifications

Parameter Symbol Rating Unit Note
Voltage on any pin relative to VSS VT 0.5 to +2.6 V
Supply voltage relative to VSS VDD, VDDQ 0.5 to +2.6 V
Short circuit output current IOS 50 mA
Power dissipation PD 1.0 W
Operating ambient temperature TA 25 to +85 °C
Storage temperature Tstg 55 to +125 °C



Description

The EDL5132CBMA is a 512M bits Mobile RAM MCP Multi Chip Package) organized as 4,194,304 words × 32 bits × 4 banks, 2 pieces of 256M bits Mobile RAM in one package.  It is packaged in 90-ball FBGA.
