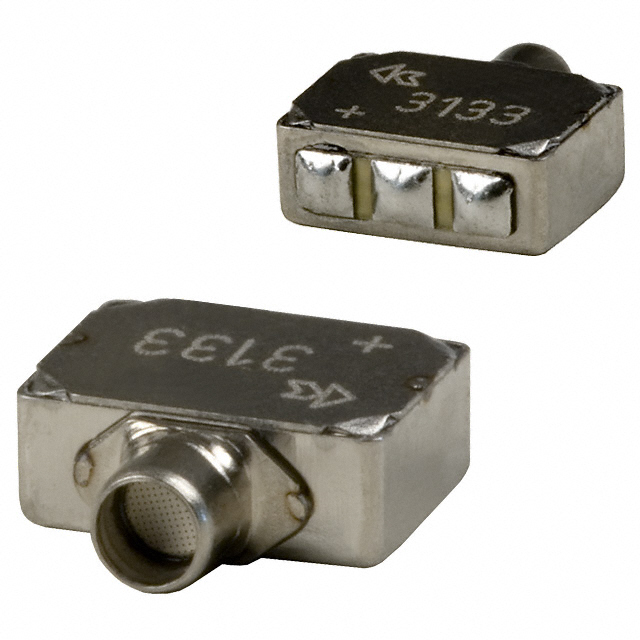

EK-23133: MIC ELECTRET OMNI BROADBAND RESP

EK-23133 Data Sheet

Get Latest Price

Part Number:: EK-23133
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

EK-23024 evaluate
MIC ELECTRET OMNI END PORT
EK-23024-000 evaluate
US $10.77 - 13.48 / Piece

Microphones 5.56 X 3.98 X 2.21MM -53 SENS, 12S PORT
EK-23024-005 evaluate
US $10.09 - 12.61 / Piece

Microphones 5.56 X 3.98 X 2.21MM -53 SENS, 12S PORT

Product Details

Quick Details

Series:	EK	Manufacturer:	Knowles Acoustics
Type:	Electret Condenser	Output Type:	Analog
Direction:	Omnidirectional	Frequency Range:	100Hz ~ 8kHz
Sensitivity:	-53dB ±2dB	S/N Ratio:	-
Impedance:	4.4 kOhm	Dimensions :	2.7 in x 0.95 in x 0.28 in
Voltage - Rated:	1.3V	Current - Supply:	50µA
Port Location:	Top	Seal Rating:	None
Termination:	Solder Pads	Size / Dimension:	5.56mm L x 3.99mm W
Height (Max):	2.26mm	Shape:	Rectangular

Description

Type: Electret Condenser
Output Type: Analog
Direction: Omnidirectional
Port Location: Top
Seal Rating: None
Termination: Solder Pads
Shape: Rectangular
Manufacturer: Knowles Acoustics
Sensitivity: -53dB ±2dB
S/N Ratio: -
Impedance: 4.4 kOhm
Current - Supply: 50µA
Size / Dimension: 5.56mm L x 3.99mm W
Height (Max): 2.26mm
Packaging: -
Series: EK
Voltage - Rated: 1.3V
Frequency Range: 100Hz ~ 8kHz

Parameters:

Technical/Catalog Information	EK-23133
Vendor	Knowles Acoustics
Category	Audio Products
Sensitivity	-53dB ±2dB
Voltage - Rated	1.3V
Current	50A
Type	Electret Condenser
Size / Dimension	Rectangular - 5.56mm L x 3.99mm W x 2.21mm H
Frequency	100Hz ~ 8kHz
S/N Ratio	-
Filter Type	-
Impedance	4.4K Ohm
Termination	Solder Pads
Direction	Omnidirectional
Port Location	Side and Top
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	EK 23133 EK23133 423 1009 ND 4231009ND 423-1009
