Part Number: EL2002
Description: The EL2002 is a low cost monolithic,high slew rate, buffer amplifier. Built using the Elantec monolith...
- Table of contents:
EL2002
-
Suppliers
DataSheet
General Description
EL2002 General Description
The EL2002 is a low cost monolithic,high slew rate, buffer amplifier. Built using the Elantec monolithic Complementary Bipolar process, this patented buffer has a -3dB bandwidth of 180MHz, and delivers 100mA, yet draws only 5mA of supply current. It typically operates from ±15V power supplies but will work with as little as ±5V.
This high speed buffer may be used in a wide variety of applications in military, video and medical systems. Typical examples include fast op-amp output current boosters, coaxial cable drivers and A/D converter input buffers.
Elantec's products and facilities comply with MIL-I-45208A, and other applicable quality specifications. For information on Elantec's processing, see the Elantec document, QRA-1: Elantec's Processing, Monolithic Integrated Circuits.
EL2002 Maximum Ratings
VS Supply Voltage (V+ - V-) . . . . . . . . . . . . . . . . . . . . . . ±18V or 36V
VIN Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±15V or VS
If the input exceeds the ratings shown (or the supplies) or if the
input to outputvoltage exceeds ±7.5V then the input current must
be limited to ±50mA. Seethe applications section for more information.
IIN Input Current (See above note) . . . . . . . . . . . . . . . . . . . . . ±50mA
PD Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
The maximum power dissipation depends on package type, ambient
temperature and heat sinking. See the characteristic curves for more
details.
Output Short Circuit Duration . . . . . . . . . . . . . . . . . . . . . . .Continuous
A heat sink is required to keep the junction temperature below the
absolute maximum when the output is short circuited.
TA Operating Temperature Range. . . . . . . . . . . . . . . 0°C to +75°C
TJ Operating Junction Temperature. . . . . . . . . . . . . . . . . . . . . 150°C
TST Storage Temperature . . . . . . . . . . . . . . . . . . .-65°C to +150°C
VIN Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±15V or VS
If the input exceeds the ratings shown (or the supplies) or if the
input to outputvoltage exceeds ±7.5V then the input current must
be limited to ±50mA. Seethe applications section for more information.
IIN Input Current (See above note) . . . . . . . . . . . . . . . . . . . . . ±50mA
PD Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
The maximum power dissipation depends on package type, ambient
temperature and heat sinking. See the characteristic curves for more
details.
Output Short Circuit Duration . . . . . . . . . . . . . . . . . . . . . . .Continuous
A heat sink is required to keep the junction temperature below the
absolute maximum when the output is short circuited.
TA Operating Temperature Range. . . . . . . . . . . . . . . 0°C to +75°C
TJ Operating Junction Temperature. . . . . . . . . . . . . . . . . . . . . 150°C
TST Storage Temperature . . . . . . . . . . . . . . . . . . .-65°C to +150°C
EL2002 Features
* 180MHz bandwidth
* 2000V/s slew rate
* Low bias current, 3A typical
* 100mA output current
* 5mA supply current
* Short circuit protected
* Low cost
* Stable with capacitive loads
* Wide supply range ±5V to ±15V
* No thermal runaway
* 2000V/s slew rate
* Low bias current, 3A typical
* 100mA output current
* 5mA supply current
* Short circuit protected
* Low cost
* Stable with capacitive loads
* Wide supply range ±5V to ±15V
* No thermal runaway
EL2002 Typical Application
* Op amp output current booster
* Cable/line driver
* A/D input buffer
* Isolation buffer
* Cable/line driver
* A/D input buffer
* Isolation buffer

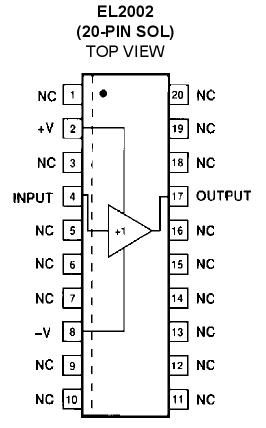

EL2002 Connection Diagram
EL2002
PDF/DataSheet Download
- Datasheet: EL2002
- File Size: 227386 KB
- Manufacturer: INTERSIL [Intersil Corporation]
- Click here to Download
