EL2001 General Description
EL2001 Maximum Ratings
VS Supply Voltage (V+ - V-) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±18V or 36V
VIN Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . b.±15V or VS
If the input exceeds the ratings shown (or the supplies) or if the input to output
voltage exceeds ±7.5V then the input current must be limited to ±50 mA. See
the applications section for more information.
IIN Input Current (See above note) . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA
PD Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
The maximum power dissipation depends on package type, ambient
temperature and heat sinking. See the characteristic curves for more details.
Output Short Circuit Duration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous
A heat sink is required to keep the junction temperature below the absolute
maximum when the output is short circuited.
TA Operating Temperature Range. . . . . . . . . . . . . . . . . . . . . . . . .0°C to +75°C
TJ Operating Junction Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
TST Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C
EL2001 Features
* 1.3mA supply current
* 70MHz bandwidth
* 2000V/s slew rate
* Low bias current, 1A typical
* 100mA output current
* Short circuit protected
* Low cost
* Stable with capacitive loads
* Wide supply range ±5V to ±15V
* No thermal runaway
EL2001 Typical Application
* Op amp output current booster
* Cable/line driver
* A/D input buffer
* Low standby current systems

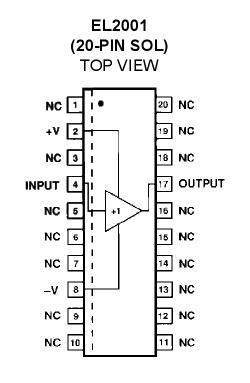

EL2001 Connection Diagram
