EL2099C

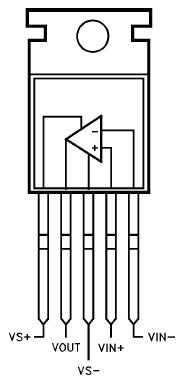

Voltage between VS+ and VS- .............................................+33V
Voltage at VS+ ..................................................................+16.5V
Voltage at VS- ....................................................................-16.5V
Voltage between VIN+ and VIN-........................................... ±6V
Current into VIN+ or VIN- ................................................±10 mA
Internal Power Dissipation ........................................See Curves
Operating Ambient Temperature Range ...................0 to +75
Operating Junction Temperature .........................................150
Storage Temperature Range ...............................-65 to +150
Important Note:
All parameters having Min/Max specifications are guaranteed. The Test Level column indicates the specific device testing actually performed during production and Quality inspection. Elantec performs most electrical tests using modern high-speed automatic test equipment, specifically the LTX77 Series system. Unless otherwise noted, all tests are pulsed tests, therefore T_J=T_C=T_A.

The EL2099C is a high speed, monolithic operational amplifier* featuring excellent video performance and high output current capability. Built using Elantec's Complementary Bipolar process, the EL2099C uses current mode feedback to achieve wide bandwidth, and is stable in unity gain configuration. Operation from power supplies ranging from ±5V to ±15V makes the EL2099C extremely versatile. With supplies at ±15V, the EL2099C can deliver ±11V into 25 at slew rates of 1000V/ms. At ±5V supplies, output voltage range is ±3V into 25X. Its speed and output current capability make this device ideal for video line driver and automatic test equipment applications.

Differential Gain and Phase of the EL2099C are 0.03% and 0.05° respectively, and -3 dB bandwidth is 50 MHz. These features make the EL2099C especially well suited for video distribution applications.

Elantec products and facilities comply with MIL-I-45208A, and other applicable quality specifications. For information on Elantec's processing, see Elantec document, QRA-1: Elantec's Processing, Monolithic Integrated Circuits.
