EL5129

Features:

• Multiple gamma buffers
- 6 channels (EL5129)
- 10 channels (EL5329)
• Single V_COM amplifier
• Low supply current
- 3.5mA (EL5129)
- 5.5mA (EL5329)
• For higher speed or higher output power, see the EL5x24 family
• Pb-free available (RoHS compliant)





Application

• TFT-LCD monitors
• LCD televisions
• Industrial flat panel displays

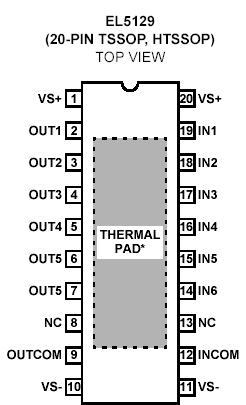

Pinout






Specifications

Supply Voltage between V_S+ and V_S- . . . . . . . . . . . . . . . . . . . .+18V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . V_S- -0.5V, V_S+ +0.5V
Maximum Continuous Output Current (V_OUT0-9) . . . . . . . . . . 15mA
Maximum Continuous Output Current (V_OUTA). . . . . . . . . . . 100mA
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
Maximum Die Temperature . . . . . . . . . . . . . . . . . . . . . . . . .. +125°C
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . .-65°C to +150°C
Ambient Operating Temperature . . . . . . . . . . . . . . . . -40°C to +85°C





Description

The EL5129 and EL5329 integrate multiple gamma buffers and a single VCOM buffer for use in large panel LCD displays of 10 and greater. The EL5129 integrates 6 gamma channels and the EL5329 integrates 10 gamma channels. Half of the gamma channels in each device are designed to swing to the upper supply rail, with the other half designed to swing to the lower rail. The output capability of each channel is 10mA continuous, with 120mA peak. The gamma buffers feature a 10MHz 3dB bandwidth specification and a 9V/s slew rate. The VCOM amplifier is designed to swing from rail to rail. The output current capability of the VCOM in the EL5129 and EL5329 is 30mA continuous, 150mA peak and a slew rate of 10V/s.
