Purchase EL5197C, In-stock EL5197C From SeekIC.
Part Number: EL5197C
Description: The EL5197C and EL5197AC are fixed gain amplifiers with a band-width of 200MHz, making these amplifiers ideal for to...
- Table of contents:
EL5197C
-
Suppliers
DataSheet
General Description
EL5197C General Description
The EL5197C and EL5197AC are fixed gain amplifiers with a band-width of 200MHz, making these amplifiers ideal for today's high speed video and monitor applications. These amplifiers feature inter-nal gain setting resistors and can be configured in a gain of +1, -1 or+2. The same bandwidth is seen in both gain-of-1 and gain-of-2 applications.
With a supply current of just 4mA and the ability to run from a single supply voltage from 5V to 10V, these amplifiers are also ideal for hand held, portable or battery powered equipment.
The EL5197AC also incorporates an enable and disable function to reduce the supply current to 100µA typical per amplifier. Allowing the CE</a> pin to float or applying a low logic level will enable the amplifier.
The EL5197C is offered in the 5-pin SOT23 package and the EL5197AC is available in the 6-pin SOT23 as well as the industry-standard 8-pin SO packages. Both operate over the industrial tempera-ture range of -40°C to +85°C.
EL5197C Maximum Ratings
Supply Voltage between VS+ and VS- 11V
Maximum Continuous Output Current 50mA
Operating Junction Temperature 125°C
Power Dissipation See Curves
Pin Voltages VS- - 0.5V to VS+ +0.5V
Storage Temperature -65°C to +150°C
Operating Temperature -40°C to +85°C
Maximum Continuous Output Current 50mA
Operating Junction Temperature 125°C
Power Dissipation See Curves
Pin Voltages VS- - 0.5V to VS+ +0.5V
Storage Temperature -65°C to +150°C
Operating Temperature -40°C to +85°C
EL5197C Features
•Gain selectable (+1, -1, +2)
•200MHz -3dB BW (AV= 1, 2)
•4mA supply current
•Fast enable/disable (EL5197AC only)
•Single and dual supply operation, from 5V to 10V
•Available in SOT23 packages
•Triple (EL5397C) available
•400MHz, 9mA product available (EL5196C, EL5396C)
•200MHz -3dB BW (AV= 1, 2)
•4mA supply current
•Fast enable/disable (EL5197AC only)
•Single and dual supply operation, from 5V to 10V
•Available in SOT23 packages
•Triple (EL5397C) available
•400MHz, 9mA product available (EL5196C, EL5396C)
EL5197C Typical Application
•Battery powered equipment
•Hand held, portable devices
•Video amplifiers
•Cable drivers
•RGB amplifiers
•Test equipment
•Instrumentation
•Current to voltage converters
•Hand held, portable devices
•Video amplifiers
•Cable drivers
•RGB amplifiers
•Test equipment
•Instrumentation
•Current to voltage converters

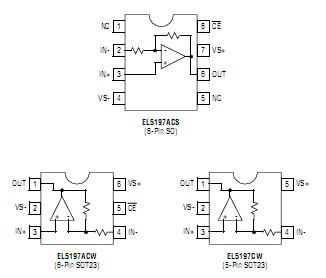

EL5197C Connection Diagram
EL5197CS-T13
PDF/DataSheet Download
- Datasheet: EL5197CS-T13
- File Size: 233902 KB
- Manufacturer: ELANTEC [Elantec Semiconductor]
- Click here to Download
