EL5485

Features: • 4ns typ. propagation delay• 5V to 12V input supply• +2.7V to +5V output supply• True-to-ground input• Rail-to-rail outputs• Active low latch• Single (EL5185) available• Dual (EL5285) available• Window available (EL5287)• Pin-c...

product image

EL5485 Picture
See larger image
SeekIC No. : 004335526 Detail

EL5485: Features: • 4ns typ. propagation delay• 5V to 12V input supply• +2.7V to +5V output supply• True-to-ground input• Rail-to-rail outputs• Active low latch• Si...

EL5485 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EL5485
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 4ns typ. propagation delay
• 5V to 12V input supply
• +2.7V to +5V output supply
• True-to-ground input
• Rail-to-rail outputs
• Active low latch
• Single (EL5185) available
• Dual (EL5285) available
• Window available (EL5287)
• Pin-compatible 8ns family available (EL5x81, EL5283 & EL5482)


Application

• Threshold detection
• High speed sampling circuits
• High speed triggers
• Line receivers
• PWM circuits
• High speed V/F converters


Pinout

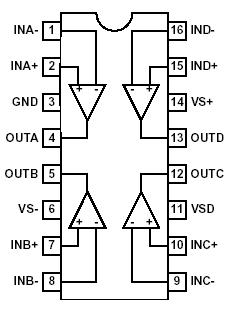

Connection Diagram


Specifications

Analog Supply Voltage (VS+ to VS-) . . . . . . . . . . . . . . . . . . . +12.6V
Digital Supply Voltage (VSD to GND). . . . . . . . . . . . . . . . . . . . . .+7V
Differential Input Voltage . . . . . . . . . . .[(VS-) -0.2V] to [(VS+) +0.2V]
Common-Mode Input Voltage . . . . . . .[(VS-) -0.2V] to [(VS+) +0.2V]
Latch Input Voltage . . . . . . . . . . . . . . . . . . . . -0.2V to [(VSD) +0.2V]
Storage Temperature Range . . . . . . . . . . . . . . . . . . -65°C to +150°C
Ambient operating Temperature . . . . . . . . . . . . . . . . -40°C to +85°C
Operating Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . 125°C
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
