EL6241C

Features: `Read + 2 write channel laser driver with oscillator and fast I/V amplifier plus a separate ROM laser driver with oscillator`200V/s I/V amplifier` 100X gain, 100mA low noise read channel` 250X gain, 250mA and 150X gain, 150mA write channels` 500MHz, 100mAP-P oscillator` Write rise/fall t...

product image

EL6241C Picture
SeekIC No. : 004335566 Detail

EL6241C: Features: `Read + 2 write channel laser driver with oscillator and fast I/V amplifier plus a separate ROM laser driver with oscillator`200V/s I/V amplifier` 100X gain, 100mA low noise read channel` ...

floor Price/Ceiling Price

Part Number:
EL6241C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Read + 2 write channel laser driver with oscillator and fast I/V amplifier plus a separate ROM laser driver with oscillator
`200V/s I/V amplifier
` 100X gain, 100mA low noise read channel
` 250X gain, 250mA and 150X gain, 150mA write channels
` 500MHz, 100mAP-P oscillator
` Write rise/fall times = 0.8ns
` Single +5V supply
` Auto-oscillator on-off with OUTEN signals



Application

·Combo CD-RW + DVD-ROM
·CD-RW to 16X
·CD-R to 32X
·Writable optical disk drives



Pinout

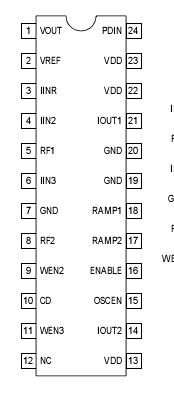

  Connection Diagram


Description

The EL6241C is a combination read + 2 write level laser driver and IV amplifier, with an extra read + oscillator ROM channel for use in dual-laser 'combo' drivers. A separate (amplitude and frequency) oscillator modulates the selected output for laser noise reduction during read or write. All these functions are provided in a 24-lead QSOP package.


The EL6241C CD pin, when high, selects the CD (write) laser. Positive current supplied to the IIN lines, through a user selected resistor, allow the full scale range of each amplifier to be matched to the full scale range of the users control DACs. When the write laser is selected, and the WEN pins are switched low, the respective current is summed to the output with 1ns rise and fall times.

The 100mAP-P (max) oscillator EL6241C is switched on when both OSCEN and OUTEN pins are high. The CD line allows the oscillator to operate at different amplitudes and frequencies for each laser.

The entire chip EL6241C is powered down when ENABLE is low. The user can define the gain of the I/V amplifier. With a slew rate of 200V/s, the I/V amplifier can normally settle to 1% within 30ns.
