Part Number: EL6293C
Description: The EL6293C is a highly integrated laser diode driver designed to sup-port multi-standard writable opt...
- Table of contents:
EL6293C
-
Suppliers
DataSheet
General Description
EL6293C General Description
The EL6293C is a highly integrated laser diode driver designed to sup-port multi-standard writable optical drives. It accomplishes this by incorporating a waveform generator wherein the diode currents and timing details can be programmed before operation. The data input cir-cuitry inspects the NRZ serial data waveform and generates programmed waveforms in recognition of 3, 4, 5, or 6 or more clock periods of space changing to 3, 4, 5, or 6 or more clock periods of mark, and vice versa.
This programmable architecture allows reprogramming of the timers to support different media, DVD or CD standards, and different speeds. The programming is accomplished through a serial interface port. Two outputs are provided to support dual-laser multi-standard optical heads.
The EL6293C requires 3.3V and 5V supplies, with all the logical interface operating on the 3.3V supply.
The EL6293C is available in a 32-pin LPP package for improved ther-mal performance and reduced footprint.
EL6293C Features
* Complete programmable laser diode driver
* 250mA maximum output
* 8bit x 8bit multiplying DAC output provides 8bit full scale adjustment and 8bit resolution at any full scale output
* 0.17 nsec timer resolution
* Two laser outputs allows read/write DVD and CD combinations
* Programmable waveform values support 2.6GB DVD-RAM, 4.7GB DVD-RAM, DVD-R, DVD+RW, DVD-RW, CD-RW, and CD-R
* Analog input supports APC
* HFM oscillator programmable to 100mAP-P from 200MHz to 600MHz
* PLL allows reduced-frequency clock on flex cable
* Separate serial input works up to 25Mb/sec
* 250mA maximum output
* 8bit x 8bit multiplying DAC output provides 8bit full scale adjustment and 8bit resolution at any full scale output
* 0.17 nsec timer resolution
* Two laser outputs allows read/write DVD and CD combinations
* Programmable waveform values support 2.6GB DVD-RAM, 4.7GB DVD-RAM, DVD-R, DVD+RW, DVD-RW, CD-RW, and CD-R
* Analog input supports APC
* HFM oscillator programmable to 100mAP-P from 200MHz to 600MHz
* PLL allows reduced-frequency clock on flex cable
* Separate serial input works up to 25Mb/sec
EL6293C Typical Application
* Combination DVD writable and CD writable drives
* DVD camcorders
* DVD video recorders
* DVD camcorders
* DVD video recorders

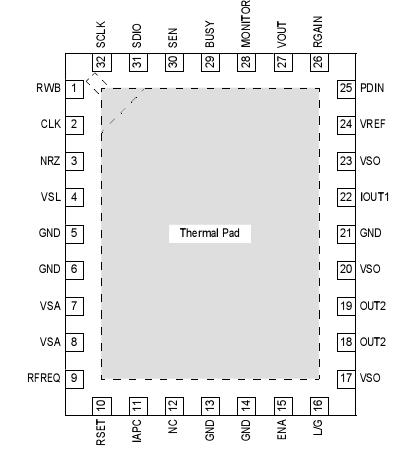

EL6293C Connection Diagram
EL6293C
