EM10Q-200
-
Suppliers
DataSheet
General Description
EM10Q-200 Maximum Ratings
| PARAMETER | SYMBOL | VALUE | UNITS |
| Operating Temperature | TJ | -40°C to 85°C | °C |
| Storage Temperature | TSTG | -55°C to 150° | °C |
| DC Power Per Resistor | P | 100 | mW |
| Typical Resistance @ ± 15% | R | 200 | OHMS |
| Soldering Temperature for 10 seconds | TL | 265°C | °C |
EM10Q-200 Features
· ESD Protection > 25 kilovolts
· Bidirectional EMI Filtering/TVS Low Pass Filters
· Low Insertion Loss: -3db Roll-Off @ 140MHz
· Protects Up to Ten(10) Data Lines
· RoHS Compliant on Lead-Free Versions
· Bidirectional EMI Filtering/TVS Low Pass Filters
· Low Insertion Loss: -3db Roll-Off @ 140MHz
· Protects Up to Ten(10) Data Lines
· RoHS Compliant on Lead-Free Versions
EM10Q-200 Typical Application
· LCD Displays
· Cellular Phones
· Notebooks
· Personal Digital Assistant (PDA)
· Ground Positioning System (GPS)
· SMART Cards
· Cellular Phones
· Notebooks
· Personal Digital Assistant (PDA)
· Ground Positioning System (GPS)
· SMART Cards

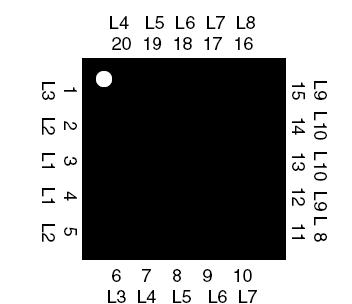

EM10Q-200 Connection Diagram
EM10Q-200
