EM128C08

Features: • Extremely Wide Operating Voltage 1.5 to 3.6 Volts• Extended Temperature Range Standard: -20o to +80oC• Fast Cycle Time Standard: < 70 ns @ 3 Volts -10: < 100 ns @ 3 Volts• Very Low Operating Current ICC < 1 mA maximum at 2V, 1 Mhz• Very Low Data R...

product image

EM128C08 Picture
See larger image
SeekIC No. : 004335861 Detail

EM128C08: Features: • Extremely Wide Operating Voltage 1.5 to 3.6 Volts• Extended Temperature Range Standard: -20o to +80oC• Fast Cycle Time Standard: < 70 ns @ 3 Volts -10: < 100 ns @...

EM128C08 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM128C08
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Extremely Wide Operating Voltage
   1.5 to 3.6 Volts
• Extended Temperature Range
   Standard: -20o to +80oC
• Fast Cycle Time
   Standard: < 70 ns @ 3 Volts
   -10: < 100 ns @ 3 Volts
• Very Low Operating Current
   ICC < 1 mA maximum at 2V, 1 Mhz
• Very Low Data Rentention Voltage
   1.2 Volts Minimum
• Very Low Standby Current
   1 mA max. @ 55oC
• 32-Pin TSOP, STSOP, SOP and 48-Pin
   BGA Packages Available

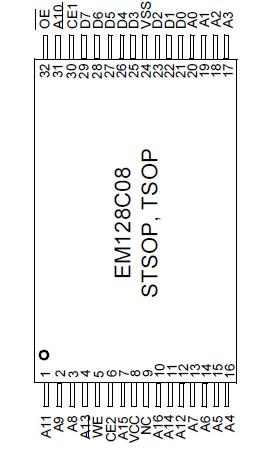

Pinout

Connection Diagram


Specifications

Item
Symbol
Rating
Unit
Voltage on any pin relative to VSS
VIN,OUT
0.3 to VCC+0.3
V
Voltage on VCC Supply Relative to VSS
VCC
0.3 to 4.0
V
Power Dissipation
PD
500
mW
Storage Temperature
TSTG
40 to +125
Operating Temperature
TA
-20 to +80



Description

The EM128C08 is an integrated memory device containing a low power 1 Mbit Static Random Access Memory organized as 131,072 words by 8 bits. The device is fabricated using NanoAmp's advanced CMOS process and high-speed/lowpower circuit technology. This device is designed for very low voltage operation making it quite suitable for battery powered devices. EM128C08 is also designed for both very low operating and standbycurrents. The device pinout is compatible with other standard 128Kx8 SRAMs.
