Part Number: EM128L08
Description: The EM128L08 is an integrated memory device containing a low power 1 Mbit Static Random Access Memory ...
- Table of contents:
EM128L08
-
Suppliers
DataSheet
General Description
EM128L08 General Description
The EM128L08 is an integrated memory device containing a low power 1 Mbit Static Random Access Memory organized as 131,072 words by 8 bits. The device is fabricated using NanoAmp's advanced CMOS process and high-speed/lowpower circuit technology. This device is designed for very low voltage operation making it quite suitable for battery powered devices. It is also designed for both very low operating and standbycurrents. The device pinout is compatible with other standard 128Kx8 SRAMs.
EM128L08 Maximum Ratings
|
Item |
Symbol |
Rating |
Unit |
| Voltage on any pin relative to VSS |
VIN,OUT |
0.3 to VCC+0.3 |
V |
| Voltage on VCC Supply Relative to VSS |
VCC |
0.3 to 4.0 |
V |
| Power Dissipation |
PD |
500 |
mW |
| Storage Temperature |
TSTG |
40 to +125 |
|
| Operating Temperature |
TA |
-20 to +80 |
|
| Soldering Temperature and Time |
TSOLDER |
260, 10sec(Lead only) |
EM128L08 Features
• Wide Voltage Range: 2.3 to 3.6 Volts
• Extended Temperature Range: -40 to +85 oC
• Fast Cycle Time: TACC < 55 ns @ 3.0V
• Very Low Operating Current: ICC < 10 mA typical at 3V, 10 Mhz
• Very Low Standby Current: ISB < 10 mA @ 55 oC
• 32-Pin TSOP, STSOP, Packages Available
• Extended Temperature Range: -40 to +85 oC
• Fast Cycle Time: TACC < 55 ns @ 3.0V
• Very Low Operating Current: ICC < 10 mA typical at 3V, 10 Mhz
• Very Low Standby Current: ISB < 10 mA @ 55 oC
• 32-Pin TSOP, STSOP, Packages Available

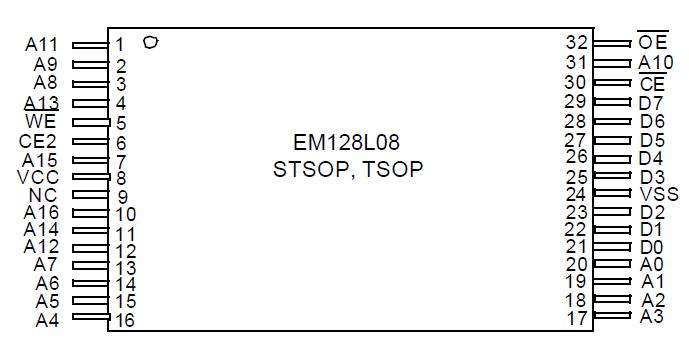

EM128L08 Connection Diagram
EM128L08
PDF/DataSheet Download
- Datasheet: EM128L08
- File Size: 43256 KB
- Manufacturer: ETC [ETC]
- Click here to Download
