EM57P300

Features: • EM57P300 ROM : 64k x 10 bits (21 sec@6K sample rate).• Working Voltage 2.4V ~ 5.1V.• One 4-bit input port, two 4-bit I/O ports, and 32x4 bits RAM.• 8k (maximum) program ROM.• One 6-bit timer overflow control.• ASPCM synthesizer and dual tone melody/...

product image

EM57P300 Picture
See larger image
SeekIC No. : 004335952 Detail

EM57P300: Features: • EM57P300 ROM : 64k x 10 bits (21 sec@6K sample rate).• Working Voltage 2.4V ~ 5.1V.• One 4-bit input port, two 4-bit I/O ports, and 32x4 bits RAM.• 8k (maximum) ...

EM57P300 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
EM57P300
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• EM57P300 ROM : 64k x 10 bits (21 sec@6K sample rate).
• Working Voltage 2.4V ~ 5.1V.
• One 4-bit input port, two 4-bit I/O ports, and 32x4 bits RAM.
• 8k (maximum) program ROM.
• One 6-bit timer overflow control.
• ASPCM synthesizer and dual tone melody/sound effect generator.
• 4k~32k Hz playing speed for voice play-back.
• Multiple tempos for dual tone melody/sound effect play-back.
• Variable beats for dual tone melody/sound effect play-back.
• Multiple levels of volume control.
• Fixed current D/A output to drive external connected transistor for voice output.


Pinout

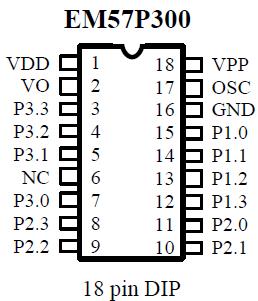

Connection Diagram


Specifications

Item
Symbol
Min.
Max.
Unit
Supply voltage
VDD-VSS
-0.3
6.0
V
Input voltage
VIN
VSS-0.3
VDD+0.3
V
Operating temperature
TOP
-20
70
Storage temperature
TSTG
-55
+125



Description

EM57P300 is a tiny-controlled-based voice/dual tone melody/dual tone sound effect Ics which contain all the function of EM57000 series and has an OTP (One Time Programmable) ROM inside.
