Product Details

Description



Features:

` Fast access time: 45/55/70ns
` Low power consumption:
  Operating current:
  40/30/20mA (TYP.)
  Standby current: -L/-LL version
  20/2A (TYP.)
` Single 2.7V ~ 3.6V power supply
` All inputs and outputs TTL compatible
` Fully static operation
` Tri-state output
` Data byte control :
  LB# (DQ0 ~ DQ7)
  UB# (DQ8 ~ DQ15)
` Data retention voltage: 1.5V (MIN.)
` Package:
  44-pin 400 mil TSOP-II
  48-ball 6mm x 8mm TFBGA

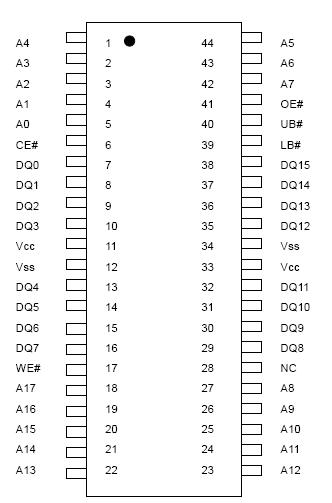

Pinout

Connection Diagram


Specifications

PARAMETER SYMBOL RATING UNIT
Terminal Voltage with Respect to Vss VTERM -0.5 to 4.6 V
Operating Temperature TA 0 to 70(C grade) °C
-20 to 80(E grade)
-40 to 85(I grade)
Storage Temperature TSTG -65 to 150 °C
Power Dissipation PD
 PD 1 W
DC Output Current IOUT 50 mA
Soldering Temperature (under 10 sec) TSOLDER 260 °C



Description

The EM6156K600V is a 4,194,304-bit low power CMOS static random access memory organized as 262,144 words by 16 bits. It is fabricated using very high performance, high reliability CMOS technology. Its standby current is stable within the range of operating temperature.

The EM6156K600V is well designed for low power application, and particularly well suited for battery back-up nonvolatile memory application.

The EM6156K600V operates from a single power supply of 2.7V ~ 3.6V and all inputs and outputs are fully TTL compatible
