Part Number: ES6168A
Description: The ES6168A VibrattoTMS DVD processor is a super high- performance single-chip MPEG video decoding solution ...
- Table of contents:
ES6168A
-
Suppliers
DataSheet
General Description
ES6168A General Description
The ES6168A VibrattoTMS DVD processor is a super high- performance single-chip MPEG video decoding solution that provides not only DVD decoding, but also MPEG-4 support, allowing users to view video clips (from the Internet, a camcorder, or other source) on DVD players.
The ES6168A integrates a state-of-the-art progressive- scan video feature to provide brilliant and sharp, flicker- free output to the video display, built-in CPRM, and S/PDIF input and output support. The ES6168A performs audio/video stream data processing, TV encoding, MacrovisionTM copy protection, DVD system navigation, system control, and housekeeping functions.
The Vibratto-S DVD processor is built on the ESS proprietary dual CPU Programmable Multimedia Processor (PMP) core consisting of 32-bit RISC and 64-bit DSP processors and offers the best DVD feature set. The processing units enable simultaneous parallel execution of system commands and data processing to perform specialized encoding and decoding tasks.
The RISC processor performs bit stream parsing, control audio data output, transfer video and audio data to the vector engine and service system control and housekeeping functions. The vector engine performs audio and video micro-code processing required by A/V standards, such as Dolby Digital, MPEG and JPEG imaging. These processing tasks include video motion compensation and estimation, loop filtering, Discrete Cosine Transforms (DCT), inverse DCT, quantization, and inverse quantization.
The Vibratto-S DVD processor supports both parallel and serial DVD loader interfaces, industry standard I2 S audio data input and output, EPROM and DRAM access, and audio/video data buffering. It also supports both letterbox and pan-and-scan displays, sub-picture overlay, and On- Screen Display (OSD). In addition, the Vibratto-S DVD solution plays Karaoke, CD+G, DVD-Audio, HDCD, CD- DA, MP3, and WMA.
The ES6168A DVD processor is available in a 208-pin Plastic Quad Flat Pack (PQFP) device package.
ES6168A Features
· Single-chip DVD processor.
· MPEG-4 Advanced Simple Profile* at full screen (D1).
·Integrated NTSC/PAL encoder with pixel-adaptive de-interlacer and five 10-bit 54 MHz video DACs.
· High-quality progressive scan video output for flicker-free video display.
· DVD-Video, DVD-VR, VCD 1.1 and 2.0, and SVCD.
· Full DVD-Audio support including MLP and LPCM decode, CPPM decryption, and watermark detection.
· Media playback with CD-ROM, CD-R/RW, DVD-R/RW, DVD+R/RW, and DVD-RAM.
· Up to 7.1 channel audio outputs.
· Interface for IDE devices, A/V DVD loaders.
· Interface for CF, MS, SD, MMC, and SM memory cards.
· Direct interface of 8-/16-bit DRAM up to 128-Mb capacity.
· Direct interface for up to 4 banks of 8-/16-bit EPROM or Flash EPROM for up to 4-MB for each bank.
· Macrovision 7.1 for NTSC/PAL interlaced video.
· Macrovision NTSC/PAL (480p/576p) progressive scan video.
· Simultaneous composite, S-video, and YUV outputs.
· CCIR 656/601 YUV 4:2:2 input and output.
· On-Screen Display controller supports 256 colors in 8 degrees of transparency.
·Subpicture Unit (SPU) decoder supports karaoke lyric, subtitles, and EIA-608 compliant Line 21 Captioning.
· SmartLogoTM for custom JPEG wallpaper.
· JPEG digital photo support (Kodak Picture CDTM and Fujifilm FujiColor CDTM
· ESS Music SlideshowTM
· Bass management.
· Dolby Digital (AC-3), Dolby Pro LogicTM, and Pro Logic II.
· DTSTM surround.
· S/PDIF digital audio input and output.
· MPEG AAC and Multichannel.
· SRS TruSurroundandTruSurroundXTTM
· WindowsTM Media Audio decoding.
· Professional karaoke with full scoring scheme.

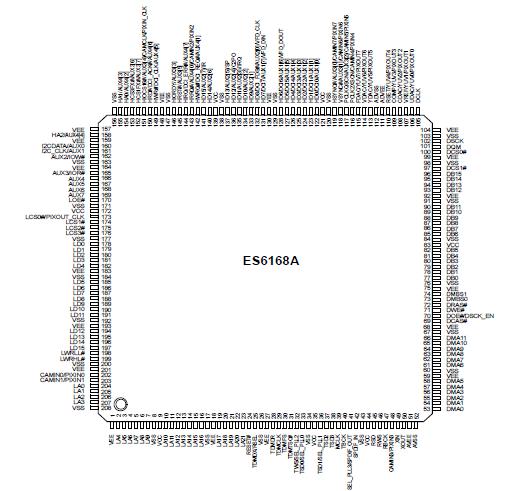

ES6168A Connection Diagram
ES6168A
