ESDA17-5SC6

Clamping Voltage :
Capacitance :
Polarity : Unidirectional
Maximum Operating Temperature : + 125 C
Packaging : Reel
Minimum Operating Temperature : - 40 C
Package / Case : SOT-23-6
Channels : 5 Channels
Operating Voltage : 14 V
Breakdown Voltage : 17 V
Series : ESDA17-5SC6


Features:

5 unidirectional Transil functions
Minimum breakdown voltage range: V_BR min. = 17V or 19V
Peak pulse power (8/20s); 150W
Tiny leakage current at stand-off voltage: < 100nA

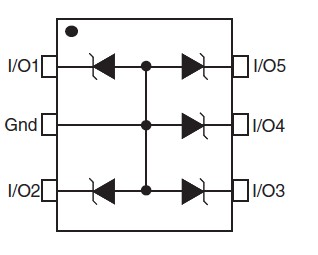

Pinout




Specifications

Symbol	Parameter		Value	Unit
VPP	ESD discharge	IEC61000-4-2 air discharge IEC61000-4-2 contact discharge	±15 ±8	kV
PPP	Peak pulse power (8/20s) (note 1)	Tj initial = Tamb	150	W
Tj	Junction temperature		125
Tstg	Storage temperature range		-55 to +150
TL	Maximum lead temperature for soldering during 10 s at 5mm for case		260
Top	Operating temperature range		-40 to +125

Note 1: For a surge greater than the maximum values, the diode will fail in short-circuit.


Description

The ESDA17/19-5SC6 is a monolithic array designed to protect up to 5 lines against ESD transients.

The ESDA17/19-5SC6 device is ideal for applications where board space savind is required.


Parameters:

Technical/Catalog Information	ESDA17-5SC6
Vendor	STMicroelectronics (VA)
Category	Circuit Protection
Package / Case	SOT-23-6
Packaging	Digi-Reel?
Polarization	5 Channel Array - Unidirectional
Power (Watts)	150W
Voltage - Reverse Standoff (Typ)	14V
Voltage - Breakdown	17V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ESDA17 5SC6 ESDA175SC6 497 7225 6 ND 49772256ND 497-7225-6
