Features: 2W per Channel Output Power Into 3Load
Internal Gain Control, Which Eliminates External Gain-Setting Components
Input MUX Select Terminal
PC-Beep Input
Depop Circuitry Integrated
Two Input Modes Allowable with Single-Ended or Fully Differential Input
Low Supply Current and Shutdown Current
Thermal Shutdown Protection
TSSOP-24 with Thermal Pad
Application Notebook Computers
Multimedia Monitors
Digital Radios and Portable TVs

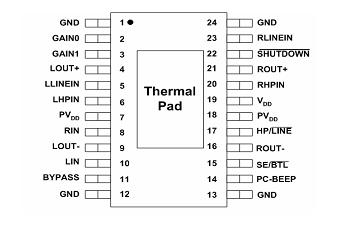

Pinout
SpecificationsSupply voltage, VDD------------------------------------------------------------------------------------------------...... 6V
Input voltage, VI------------------------------------------------------------------------------.... 0.3 V to VDD +0.3 V
Continuous total power dissipation---------------------------- internally limited (see Dissipation Rating Table)
Operating free-air temperature range, TA---------------------------------------------------------.... 40C to 85 C
Operating junction temperature range, TJ ------------------------------------------------------ -... 40C to 150C
Storage temperature range, Tstg------------------------------------------------------------------ --. 65C to 150C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds----------------------------------------- ...260C
DescriptionThe EUA5212 is a stereo audio power amplifier. Whendriving 1 W into 8-?speakers, the EUA5212 has less than0.8% THD+N across its specified frequency range. Includedwithin this device is integrated depop circuitry that virtuallyeliminates transients that cause noise in the speakers.
Amplifier gain is internally configured and controlled by wayof two terminals (GAIN0 and GAIN1). BTL gain settings of6dB, 15.5dB, 21.5dB and 27.6dB are provided, while SE gainis always configured as 0dB for headphone drive. An internalinput MUX allows two sets of stereo inputs to theamplifier .The HP/LINE terminal allows the user to selectwhich MUX input is active, regardless of whether theamplifier is in SE or BTL mode. In notebook applications,where internal speakers are driven as BTL and the line outputs (often headphone drive) are required to be SE, the EUA5212automatically switches into SE mode when the SE/BTLinputis activated, and this reduces the gain to 0dB.The EUA5212 consumes only 6 mA of supply current duringnormal operation.
EUA5212 Data Sheet
