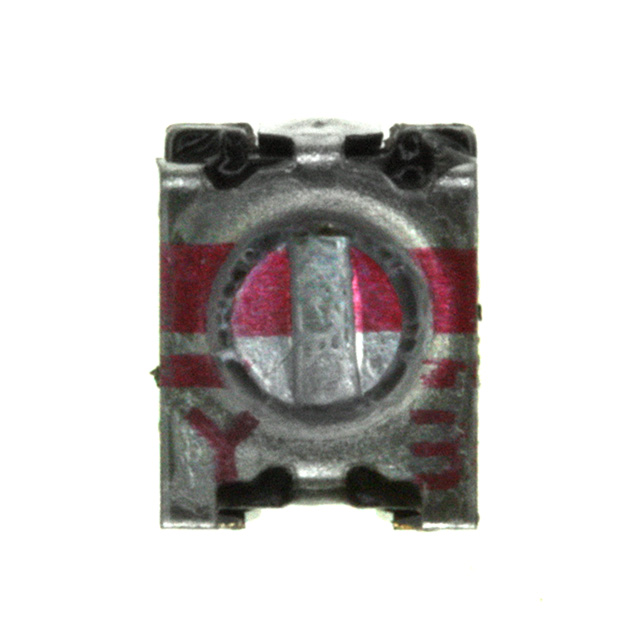

See larger image

SeekIC No. : 003622629 Detail

EVM-7JSX30BY5: TRIMMER 330K OHM 0.05W SMD

EVM-7JSX30BY5 Data Sheet

US $ .27~.55 / Piece | Get Latest Price

Part Number:: EVM-7JSX30BY5
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~50
50~100
100~250
250~500

Unit Price
$.55
$.4
$.37
$.33
$.27

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/29

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

EVM-1702 evaluate
EVALUATION MODULE
EVM-1DSW30B13 evaluate
US $.11 - .12 / Piece

Trimmer Resistors - SMD Trimmer Pot,Cermet,4mm Square,Open Frame 1.0 K ohm, +/-25%, Top Adjust, Cross Slots, 3-Terminal, Open Frame, 0.2 NCNR;RoHS;NoPb;Chk_Temp_Profile
EVM-1DSW30B14 evaluate
US $.11 - .12 / Piece

Trimmer Resistors - SMD Trimmer Pot,Cermet,4mm Square,Open Frame 10 K ohm, +/-25%, Top Adjust NCNR;RoHS;NoPb;Chk_Temp_Profile

Product Details

Quick Details

Resolution :	32 bit	Series:	EVM
Manufacturer:	Panasonic Electronic Components	Resistance (Ohms):	330k
Power (Watts):	0.05W, 1/20W	Tolerance:	±25%
Temperature Coefficient:	±250ppm/°C	Number of Turns:	Single
Adjustment Type:	Top Adjustment	Resistive Material:	Cermet
Mounting Type:	Surface Mount	Termination Style:	J Lead
Packaging:	Cut Tape (CT)Alternate Packaging

Description

Manufacturer: Panasonic Electronic Components
Number of Turns: Single
Adjustment Type: Top Adjustment
Packaging: Cut Tape (CT)Alternate Packaging
Series: EVM
Tolerance: ±25%
Temperature Coefficient: ±250ppm/°C
Resistive Material: Cermet
Mounting Type: Surface Mount
Termination Style: J Lead
Power (Watts): 0.05W, 1/20W
Size / Dimension: Square - 0.146" L x 0.122" W x 0.079" H (3.70mm x 3.10mm x 2.00mm)
Resistance (Ohms): 330k

Parameters:

Technical/Catalog Information	EVM-7JSX30BY5
Vendor	Panasonic - ECG (VA)
Category	Potentiometers, Variable Resistors
Resistance In Ohms	330K
Power (Watts)	0.05W, 1/20W
Number of Turns	Single
Package / Case	Square - 0.146" L x 0.122" W x 0.079" H (3.70mm x 3.10mm x 2.00mm)
Adjustment Type	Top Adjustment
Tolerance	±25%
Mounting Type	Surface Mount
Temperature Coefficient	±250ppm/°C
Resistive Material	Cermet
Taper	Linear
Packaging	Cut Tape (CT)
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	EVM 7JSX30BY5 EVM7JSX30BY5 P7J334CT ND P7J334CTND P7J334CT
