General Description
EZ1084 General Description
The EZ1084 series of high performance positive voltage regulators are designed for use in applications requiring low dropout performance at full rated current. Additionally, the EZ1084 series provides excellent regulation over variations in line, load and temperature.
Outstanding features include low dropout performance at rated current, fast transient response, internal current limiting and thermal shutdown protection of the output device. The EZ1084 has both fixed and adjustable voltage options, while the EZ1084B is adjustable only for cost sensitive applications. These devices are available in the popular TO-220 and TO-263 packages.
EZ1084 Maximum Ratings
| Parameter | Symbol | Maximum | |
| Input Voltage Supply | VIN | 7 | V |
| Power Dissipation | PD | Internally Limited |
W |
| Thermal Resistance Junction to Case TO-220 TO-263 |
JC | 2.5 2.5 |
°C/W |
| Thermal Resistance Junction to Ambient TO-220 TO-263 |
JA | 50 60 |
°C/W |
| Operating Junction Temperature Range |
TJ | 0 to 125 |
°C |
| Storage Temperature Range | TSTG | -65 to 150 | °C |
| Lead Temperature (Soldering) 10 Sec | TLEAD | 260 | °C |
EZ1084 Features
• Low dropout performance, 1.3V max. for EZ1084, 1.45V max. for EZ1084B
• Full current rating over line and temperature
• Fast transient response
• ±2% total output regulation over line, load and temperature (±2.4% for EZ1084B)
• Adjust pin current max 90µA over temperature
• Fixed/adjustable output voltage (EZ1084)
• Line regulation typically 0.015%
• Load regulation typically 0.05%
• TO-220 and TO-263 packages
• Full current rating over line and temperature
• Fast transient response
• ±2% total output regulation over line, load and temperature (±2.4% for EZ1084B)
• Adjust pin current max 90µA over temperature
• Fixed/adjustable output voltage (EZ1084)
• Line regulation typically 0.015%
• Load regulation typically 0.05%
• TO-220 and TO-263 packages
EZ1084 Typical Application
• High current microprocessor supplies
• Post regulators
• Post regulators

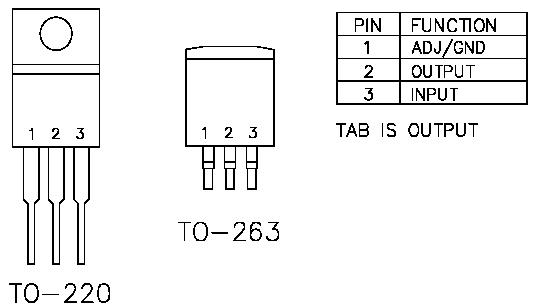

EZ1084 Connection Diagram
EZ1084
PDF/DataSheet Download
- Datasheet: EZ1084
- File Size: 78007 KB
- Manufacturer: SEMTECH [Semtech Corporation]
- Click here to Download
