Purchase EZ1085, In-stock EZ1085 From SeekIC.
Package Cooled:TO-220
Part Number: EZ1085
Package Cooled: TO-220
Description: The EZ1085 series of high performance positive voltage regulators are designed for use in applications requiring low dr...
- Table of contents:
EZ1085
-
Suppliers
DataSheet
General Description
EZ1085 General Description
The EZ1085 series of high performance positive voltage regulators are designed for use in applications requiring low dropout performance at full rated current. Additionally, the EZ1085 series provides excellent regulation over variations in line, load and temperature.
Outstanding features include low dropout performance at rated current, fast transient response, internal current limiting and thermal shutdown protection of the output device. The EZ1085 has both fixed and adjustable voltage options, while the EZ1085B is adjustable only for cost sensitive applications. These devices are available in the popular TO-220 and TO-263 packages.
EZ1085 Maximum Ratings
| Parameter | Symbol | Maximum | |
| Input Voltage Supply | VIN | 7 | V |
| Power Dissipation | PD | Internally Limited |
W |
| Thermal Resistance Junction to Case TO-220 TO-263 |
JC | 3 3 |
°C/W |
| Thermal Resistance Junction to Ambient TO-220 TO-263 |
JA | 50 60 |
°C/W |
| Operating Junction Temperature Range |
TJ | 0 to 125 |
°C |
| Storage Temperature Range | TSTG | -65 to 150 | °C |
| Lead Temperature (Soldering) 10 Sec | TLEAD | 260 | °C |
EZ1085 Features
• Low dropout performance, 1.3V max. for EZ1085, 1.45V max. for EZ1085B
• Full current rating over line and temperature
• Fast transient response
• ±2% total output regulation over line, load and temperature (±2.4% for EZ1085B)
• Adjust pin current max 90µA over temperature
• Fixed/adjustable output voltage (EZ1085)
• Line regulation typically 0.015%
• Load regulation typically 0.05%
• TO-220 and TO-263 packages
• Full current rating over line and temperature
• Fast transient response
• ±2% total output regulation over line, load and temperature (±2.4% for EZ1085B)
• Adjust pin current max 90µA over temperature
• Fixed/adjustable output voltage (EZ1085)
• Line regulation typically 0.015%
• Load regulation typically 0.05%
• TO-220 and TO-263 packages
EZ1085 Typical Application
• Post regulators
• Processor I/O supplies
• Battery chargers
• Processor I/O supplies
• Battery chargers

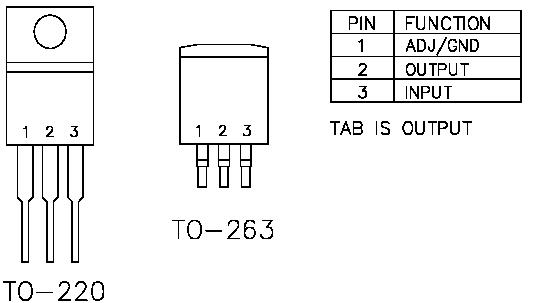

EZ1085 Connection Diagram
EZ1085
