Part Number: EZ1086C









Description: The EZ1086 series of high performance positive voltage regulators are designed for use in applications requiring low dr...


Urgent Purchase

EZ1086C General Description


The EZ1086 series of high performance positive voltage regulators are designed for use in applications requiring low dropout performance at full rated current. Additionally, the EZ1086 series provides excellent regulation over variations in line, load and temperature.

Outstanding features include low dropout performance at rated current, fast transient response, internal current limiting and thermal shutdown protection of the output device.

A variety of options are available for maximum flexibility: the EZ1086C has both fixed and adjustable voltage options and is designed for use in commercial applications; the EZ1086BC is adjustable only for cost sensitive commercial applications; the EZ1086I is adjustable only for industrial applications. All devices are available in the popular TO-220 and TO-263 packages.

EZ1086C Maximum Ratings

Parameter Symbol Maximum
Input Supply Voltage VIN 7 V
Power Dissipation PD Internally Limited W
Thermal Resistance Junction to Case
TO-220
TO-263		 JC 3
3		 °C/W
Thermal Resistance Junction to Ambient
TO-220
TO-263		 JA 50
60		 °C/W
Operating Ambient Temperature Range
EZ1086BC, EZ1086C
EZ1086I		 TA 0 to 70
-40 to 85		 °C
Operating Junction Temperature Range
EZ1086BC, EZ1086C
EZ1086I		 TJ 0 to 125
-40 to 125		 °C
Storage Temperature Range TSTG -65 to 150 °C
Lead Temperature (Soldering) 10 Sec TLEAD 300 °C
ESD Rating (Human body model) ESD 2 kV

EZ1086C Features

• Low dropout voltage: 1.3V max. for EZ1086C, 1.4V max. for EZ1086I, 1.45V max. for EZ1086BC
• Full current rating over line and temperature
• Fast transient response
• ±2% total output regulation over line, load and temperature (±2.4% for EZ1086BC)
• Adjust pin current max 90µA over temperature
• Fixed/adjustable output voltage (EZ1086C)
• Line regulation typically 0.015%
• Load regulation typically 0.05%
• Industrial temperature range (EZ1086I)
• TO-220 and TO-263 packages

EZ1086C Typical Application

• Post regulators
• Battery chargers

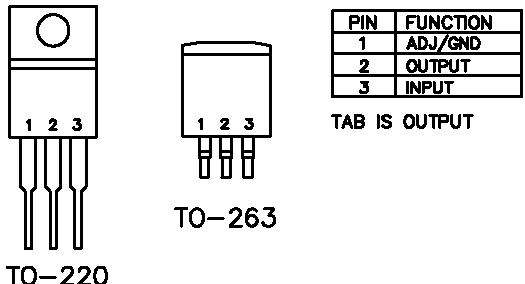

EZ1086C Connection Diagram

EZ1086C Connection Diagram

EZ1086C datasheet

EZ1086C
PDF/DataSheet Download

Find EZ1086C Suppliers
